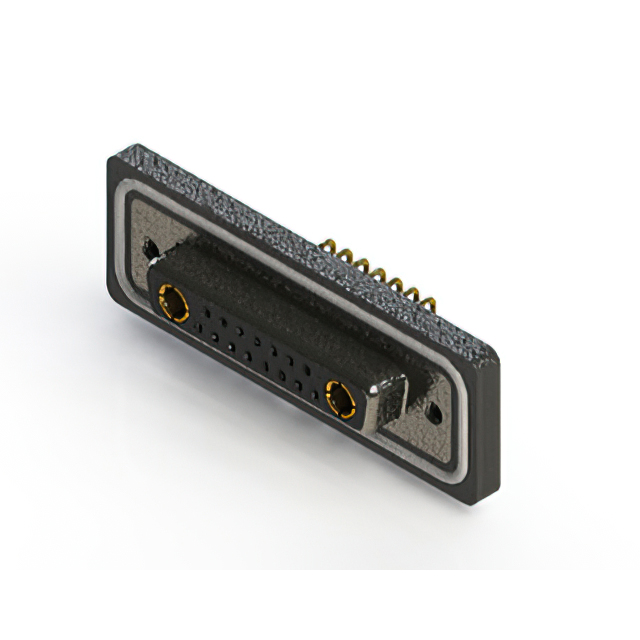

630W17W2640-3N2

Active

EDAC Inc.

CONN D-SUB RCPT 17POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630W17W2640-3N2

Active

EDAC Inc.

CONN D-SUB RCPT 17POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630W17W2640-3N2

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	30 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded
Flange Feature	Housing/Shell (4-40)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions [custom]	15
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	17W2, 3 (DB, B)
Termination	Solder
Voltage Rating	125 VDC

630W17 Series

Part	Number of Positions [custom]	Number of Positions [custom]	Contact Material	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material, Finish	Ingress Protection	Mounting Type	Contact Finish Thickness	Connector Style	Dielectric Material	Features	Voltage Rating	Number of Rows	Flange Feature	Contact Type	Connector Type	Shell Size, Connector Layout	Material Flammability Rating	Current Rating (Amps)	Color	Termination	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)
EDAC Inc. 630W17W2240-1N3	15	2	Copper Alloy	Gold	-55 °C	125 °C	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Flash	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Board Lock Mounting Brackets Shielded	125 VDC	2	Housing/Shell (4-40)	Signal and Power	Receptacle Female Sockets	17W2 3 (DB B)	UL94 V-0	10A 5A	Black	Solder
EDAC Inc. 630W17W2640-1NC	15	2	Copper Alloy	Gold	-55 °C	125 °C	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Through Hole Right Angle		Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Mounting Brackets Shielded	125 VDC	2	Housing/Shell (M3)	Signal and Power	Receptacle Female Sockets	17W2 3 (DB B)	UL94 V-0	10A 5A	Black	Solder	0.76 Ám	30 Áin
EDAC Inc. 630W17W2640-4N2	15	2	Copper Alloy	Gold	-55 °C	125 °C	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole		Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Shielded	125 VDC	2	Housing/Shell (4-40)	Signal and Power	Receptacle Female Sockets	17W2 3 (DB B)	UL94 V-0		Black	Solder	0.76 Ám	30 Áin	5 A 40 A
EDAC Inc. 630W17W2640-3N2	15	2	Copper Alloy	Gold	-55 °C	125 °C	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole		Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Shielded	125 VDC	2	Housing/Shell (4-40)	Signal and Power	Receptacle Female Sockets	17W2 3 (DB B)	UL94 V-0		Black	Solder	0.76 Ám	30 Áin	5 A 30 A
EDAC Inc. 630W17W2140-1NB	15	2	Copper Alloy	Gold	-55 °C	125 °C	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole		Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Board Lock Mounting Brackets Shielded	125 VDC	2	Housing/Shell (M3)	Signal and Power	Receptacle Female Sockets	17W2 3 (DB B)	UL94 V-0	10A 5A	Black	Solder	0.127 µm	5 µin
EDAC Inc. 630W17W2640-2N3	15	2	Copper Alloy	Gold	-55 °C	125 °C	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole		Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Board Lock Mounting Brackets Shielded	125 VDC	2	Housing/Shell (4-40)	Signal and Power	Receptacle Female Sockets	17W2 3 (DB B)	UL94 V-0		Black	Solder	0.76 Ám	30 Áin	5 A 20 A
EDAC Inc. 630W17W2240-2NA	15	2	Copper Alloy	Gold	-55 °C	125 °C	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Flash	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Shielded	125 VDC	2	Housing/Shell (M3)	Signal and Power	Receptacle Female Sockets	17W2 3 (DB B)	UL94 V-0		Black	Solder			5 A 20 A
EDAC Inc. 630W17W2640-4N3	15	2	Copper Alloy	Gold	-55 °C	125 °C	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole		Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Board Lock Mounting Brackets Shielded	125 VDC	2	Housing/Shell (4-40)	Signal and Power	Receptacle Female Sockets	17W2 3 (DB B)	UL94 V-0		Black	Solder	0.76 Ám	30 Áin	5 A 40 A
EDAC Inc. 630W17W2640-4N4	15	2	Copper Alloy	Gold	-55 °C	125 °C	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole		Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Mounting Brackets Shielded	125 VDC	2	Housing/Shell (4-40)	Signal and Power	Receptacle Female Sockets	17W2 3 (DB B)	UL94 V-0		Black	Solder	0.76 Ám	30 Áin	5 A 40 A
EDAC Inc. 630W17W2140-1NC	15	2	Copper Alloy	Gold	-55 °C	125 °C	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Through Hole Right Angle		Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Mounting Brackets Shielded	125 VDC	2	Housing/Shell (M3)	Signal and Power	Receptacle Female Sockets	17W2 3 (DB B)	UL94 V-0	10A 5A	Black	Solder	0.127 µm	5 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 28.03

Description

General part information

630W17 Series

17 (15 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
