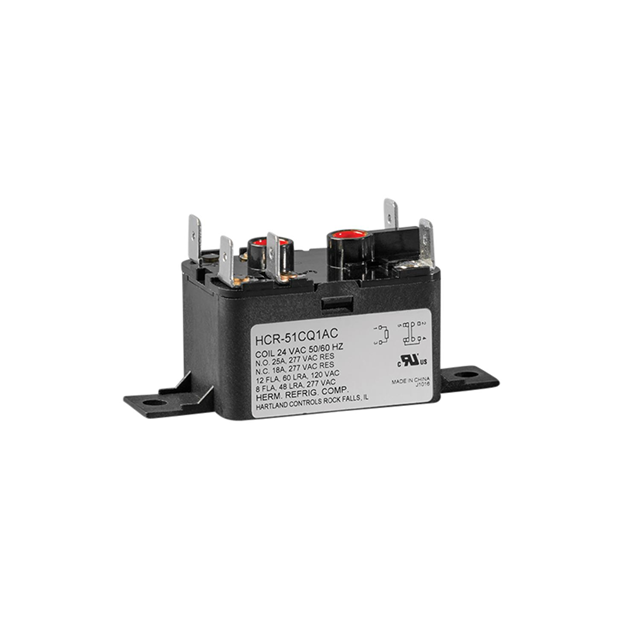

90292

Active

Hartland Controls/Littelfuse

RELAY GEN PURPOSE SPST 18A 240V

Search across all available documentation for this part.

Active

Hartland Controls/Littelfuse

RELAY GEN PURPOSE SPST 18A 240V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY GEN PURPOSE SPST 18A 240V

Part	Contact Rating (Current)	Must Release Voltage	Mounting Type	Coil Voltage	Termination Style	Must Operate Voltage	Contact Form	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type
Hartland Controls/Littelfuse 90292	18 A	48 VAC	Chassis Mount	240 VAC	Quick Connect - 0.250" (6.3mm)	176 VAC	SPST-NO (DM) (1 Form X)	General Purpose	65 °C	-40 °C	Non Latching
Hartland Controls/Littelfuse 90340	15 A	4.8 VAC	Chassis Mount	24 VAC	Quick Connect - 0.250" (6.3mm)		DPDT (2 Form C)	General Purpose	65 °C	-40 °C	Non Latching

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (DM) (1 Form X) 240VAC Coil Chassis Mount
