Description
General part information
MS3475W20-41S

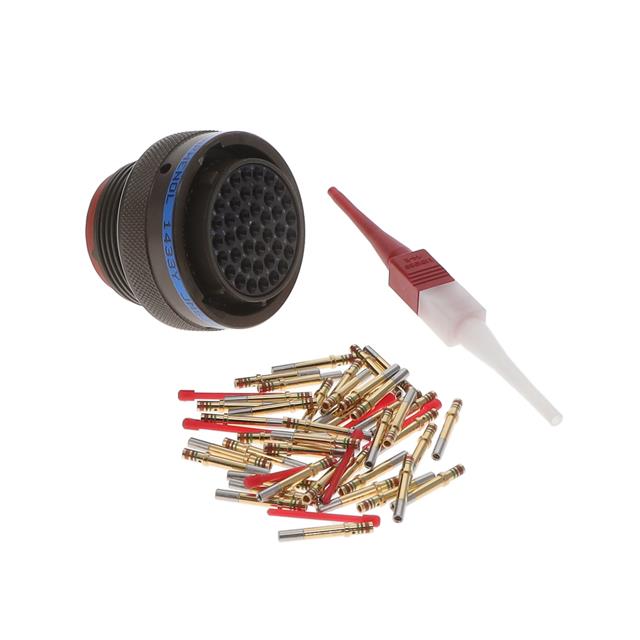

41 Position Circular Connector Plug, Female Sockets Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3475W20-41S |
|---|---|
| Connector Type | Female Sockets, Plug |
| Fastening Type | Threaded |
| Features | Coupling Nut |
| Grade | Military |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 41 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -65 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Qualification | MIL-DTL-26482 Series II |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert (Maximum) | 41 |
| Shell Size - Insert (Minimum) | 20 |
| Shielding | Unshielded |
| Termination | Crimp |
