6573009801F

Active

DIALIGHT

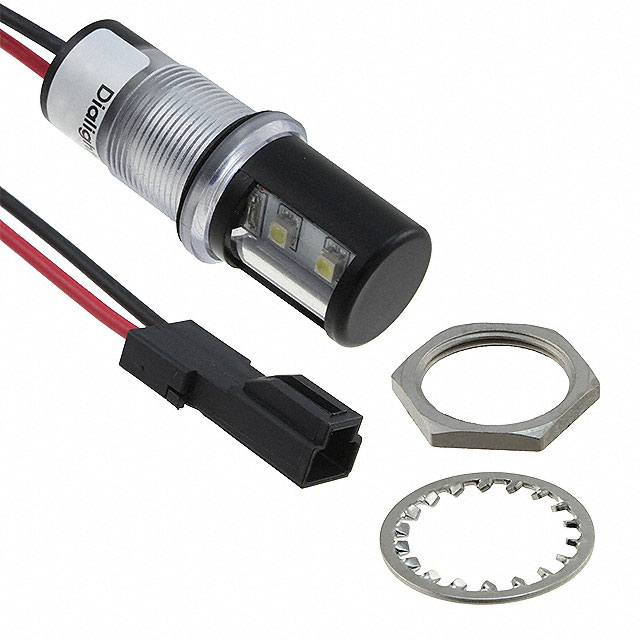

LED RT ANGLE INDICATOR ASSEMBLY

Search across all available documentation for this part.

Active

DIALIGHT

LED RT ANGLE INDICATOR ASSEMBLY

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	47	$ 19.77

General part information

Panel Indicator

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

LED RT ANGLE INDICATOR ASSEMBLY

Part	Millicandela Rating	Lamp Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Type	Ratings	Current	Panel Cutout Shape	Lens Size [diameter]	Voltage [Max]	Voltage [Min]	Termination Style	Termination Style	Termination Style	Ingress Protection	Viewing Angle	Lens Transparency
DIALIGHT 6573009804F	1680 mcd	Red	17.53 mm	0.69 in	LED	DC	24 mA	Round	17.8 mm	32 V	12 V
DIALIGHT 6573009803F	1960 mcd	Green	17.53 mm	0.69 in	LED	DC	24 mA	Round	17.8 mm	32 V	12 V
DIALIGHT 6573009806F	8800 mcd	Blue	17.53 mm	0.69 in	LED	DC	24 mA	Round	17.8 mm	32 V	12 V
DIALIGHT 6573009213F	2000 mcd	White	17.53 mm	0.69 in	LED	DC		Round		32 V	12 V	0.5 "	Wire Leads	12.7 mm	IP67, NEMA 4X	80 °, 110 °	Clear
DIALIGHT 6573009801F
DIALIGHT 6573009805F
