NCL30083FLYGEVB
ActiveON Semiconductor
FLYBACK A19 10W/500MA 100-265 VAC/
NCL30083FLYGEVB
ActiveON Semiconductor
FLYBACK A19 10W/500MA 100-265 VAC/
Description
General part information
NCL30083FLYGEVB

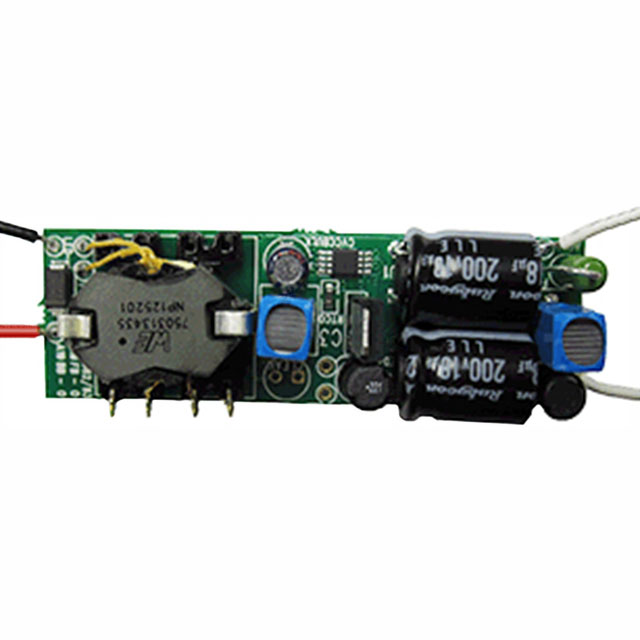

NCL30083 1, Isolated Outputs LED Driver Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | NCL30083FLYGEVB |
|---|---|
| Contents | Board |
| Current - Output / Channel | 500 mA |
| Features | Dimmable |
| Isolated Output Count | 1 |
| Output Type | Isolated |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | NCL30083 |
| Voltage - Input (AC) Maximum | 265 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
| Voltage - Output (Max) | 22.1 V |
| Voltage - Output (Min) | 9.6 V |
