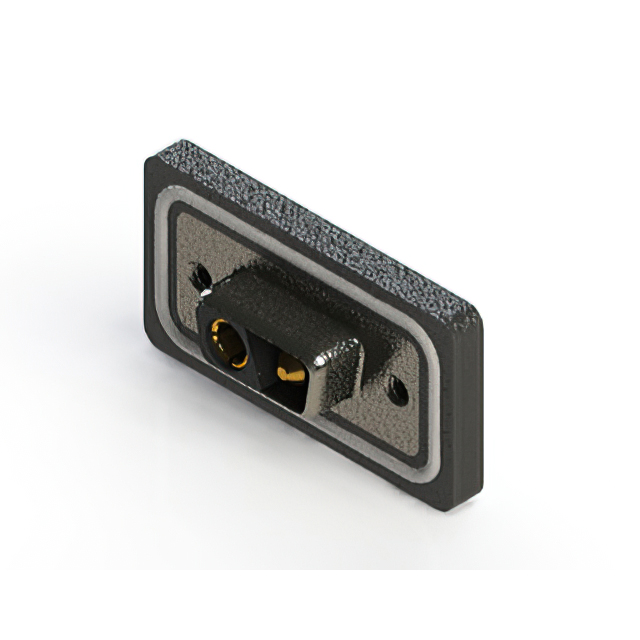

628W2WK2624-3N2

Active

EDAC Inc.

CONN D-SUB RCPT 2POS PNL MT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628W2WK2624-3N2

Active

EDAC Inc.

CONN D-SUB RCPT 2POS PNL MT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628W2WK2624-3N2

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	30 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded
Flange Feature	Housing/Shell (4-40)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2WK2, 1 (DE, E), 2V2, 2W2C, 2W2
Termination	Solder
Voltage Rating	125 VDC

628W2W Series

Part	Contact Material	Connector Type	Shell Size, Connector Layout	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Type	Current Rating (Amps)	Color	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Contact Finish	Shell Material, Finish	Voltage Rating	Dielectric Material	Number of Positions	Number of Rows	Connector Style	Material Flammability Rating	Ingress Protection	Termination	Contact Finish Thickness
EDAC Inc. 628W2WK2122-1NA	Copper Alloy	Receptacle Female Sockets	1 (DE E) 2V2 2W2 2W2C 2WK2	-25 °C	85 °C	Shielded	Power	10 A	Black	0.127 µm	5 µin	Housing/Shell (M3)	Gold	Nickel Plated Steel	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	2	1	Combo D-Sub	UL94 V-0	IP67 - Dust Tight Waterproof
EDAC Inc. 628W2W2-324-4NA	Copper Alloy	Receptacle Female Sockets	1 (DE E) 2V2 2W2 2W2C 2WK2	-25 °C	85 °C	Shielded	Power	40 A	Black	0.38 µm	15 µin	Housing/Shell (M3)	Gold	Nickel Plated Steel	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	2	1	Combo D-Sub	UL94 V-0	IP67 - Dust Tight Waterproof	Solder
EDAC Inc. 628W2W2-324-4ND	Copper Alloy	Receptacle Female Sockets	1 (DE E) 2V2 2W2 2W2C 2WK2	-25 °C	85 °C	Board Lock Shielded	Power	40 A	Black	0.38 µm	15 µin	Board Side (M3)	Gold	Nickel Plated Steel	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	2	1	Combo D-Sub	UL94 V-0	IP67 - Dust Tight Waterproof	Solder
EDAC Inc. 628W2W2-622-4NA	Copper Alloy	Receptacle Female Sockets	1 (DE E) 2V2 2W2 2W2C 2WK2	-25 °C	85 °C	Shielded	Power	40 A	Black	0.76 Ám	30 Áin	Housing/Shell (M3)	Gold	Nickel Plated Steel	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	2	1	Combo D-Sub	UL94 V-0	IP67 - Dust Tight Waterproof
EDAC Inc. 628W2WK2222-4NA	Copper Alloy	Receptacle Female Sockets	1 (DE E) 2V2 2W2 2W2C 2WK2	-25 °C	85 °C	Shielded	Power	40 A	Black			Housing/Shell (M3)	Gold	Nickel Plated Steel	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	2	1	Combo D-Sub	UL94 V-0	IP67 - Dust Tight Waterproof		Flash
EDAC Inc. 628W2WK2224-4NA	Copper Alloy	Receptacle Female Sockets	1 (DE E) 2V2 2W2 2W2C 2WK2	-25 °C	85 °C	Shielded	Power	40 A	Black			Housing/Shell (M3)	Gold	Nickel Plated Steel	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	2	1	Combo D-Sub	UL94 V-0	IP67 - Dust Tight Waterproof	Solder	Flash
EDAC Inc. 628W2WK2624-3N2	Copper Alloy	Receptacle Female Sockets	1 (DE E) 2V2 2W2 2W2C 2WK2	-25 °C	85 °C	Shielded	Power	30 A	Black	0.76 Ám	30 Áin	Housing/Shell (4-40)	Gold	Nickel Plated Steel	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	2	1	Combo D-Sub	UL94 V-0	IP67 - Dust Tight Waterproof	Solder
EDAC Inc. 628W2WK2122-4NA	Copper Alloy	Receptacle Female Sockets	1 (DE E) 2V2 2W2 2W2C 2WK2	-25 °C	85 °C	Shielded	Power	40 A	Black	0.127 µm	5 µin	Housing/Shell (M3)	Gold	Nickel Plated Steel	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	2	1	Combo D-Sub	UL94 V-0	IP67 - Dust Tight Waterproof
EDAC Inc. 628W2WK2224-1ND	Copper Alloy	Receptacle Female Sockets	1 (DE E) 2V2 2W2 2W2C 2WK2	-25 °C	85 °C	Board Lock Shielded	Power	10 A	Black			Board Side (M3)	Gold	Nickel Plated Steel	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	2	1	Combo D-Sub	UL94 V-0	IP67 - Dust Tight Waterproof	Solder	Flash
EDAC Inc. 628W2WK2124-2ND	Copper Alloy	Receptacle Female Sockets	1 (DE E) 2V2 2W2 2W2C 2WK2	-25 °C	85 °C	Board Lock Shielded	Power	20 A	Black	0.127 µm	5 µin	Board Side (M3)	Gold	Nickel Plated Steel	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	2	1	Combo D-Sub	UL94 V-0	IP67 - Dust Tight Waterproof	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 12.31

Description

General part information

628W2W Series

2 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
