629-M37-340-GN1

Active

EDAC Inc.

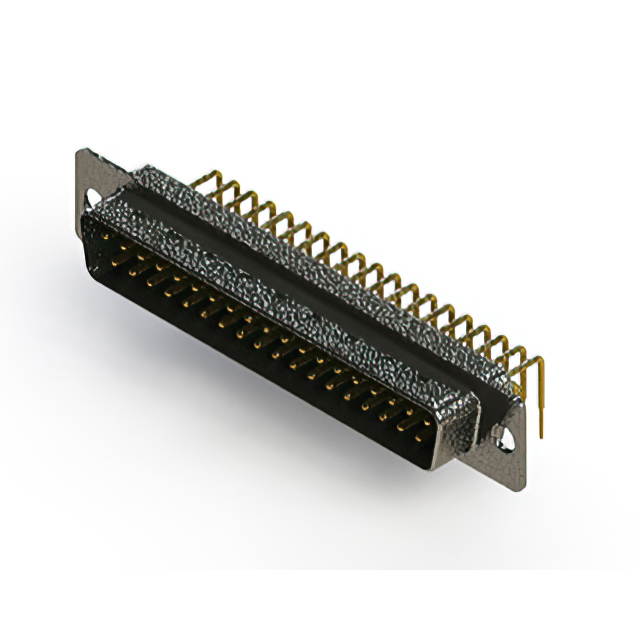

CONN D-SUB PLUG 37POS R/A SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629-M37-340-GN1

Active

EDAC Inc.

CONN D-SUB PLUG 37POS R/A SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-M37-340-GN1

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

629-M37 Series

...

Part	Mounting Type	Dielectric Material	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Rows	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Current Rating (Amps)	Termination	Connector Style	Flange Feature	Contact Finish	Backset Spacing	Backset Spacing	Shell Size, Connector Layout	Features	Material Flammability Rating	Contact Material	Color	Contact Finish Thickness
EDAC Inc. 629-M37-640-GN4	Through Hole Right Angle	Polyamide (PA6T) Nylon 6T	Nickel Plated Steel	0.76 Ám	30 Áin	Male Pins Plug	2	37	-55 °C	125 °C	Signal	5 A	Solder	Combo D-Sub	4-40	Gold	9.4 mm	0.37 in	4 (DC C)	Grounding Indents Mounting Brackets Shielded	UL94 V-0	Copper Alloy	Black
EDAC Inc. 629-M37-640-WN3	Through Hole Right Angle	Polyamide (PA6T) Nylon 6T	Nickel Plated Steel	0.76 Ám	30 Áin	Male Pins Plug	2	37	-55 °C	125 °C	Signal	5 A	Solder	Combo D-Sub	Housing/Shell (4-40)	Gold	9.4 mm	0.37 in	4 (DC C)	Grounding Indents Mounting Brackets Shielded	UL94 V-0	Copper Alloy	Black
EDAC Inc. 629-M37-640-LT1	Through Hole Right Angle	Polyamide (PA6T) Nylon 6T		0.76 Ám	30 Áin	Male Pins Plug	2	37	-55 °C	125 °C	Signal	5 A	Solder	Combo D-Sub	Housing/Shell (Unthreaded)	Gold	9.4 mm	0.37 in	4 (DC C)	Grounding Indents Shielded	UL94 V-0	Copper Alloy	Black
EDAC Inc. 629-M37-640-BN4	Through Hole Right Angle	Polyamide (PA6T) Nylon 6T	Nickel Plated Steel	0.76 Ám	30 Áin	Male Pins Plug	2	37	-55 °C	125 °C	Signal	5 A	Solder	Combo D-Sub	4-40	Gold	9.4 mm	0.37 in	4 (DC C)	Grounding Indents Mounting Brackets Shielded	UL94 V-0	Copper Alloy	Black
EDAC Inc. 629-M37-240-WT2	Through Hole Right Angle	Polyamide (PA6T) Nylon 6T				Male Pins Plug	2	37	-55 °C	125 °C	Signal	5 A	Solder	Combo D-Sub	Housing/Shell (4-40)	Gold	9.4 mm	0.37 in	4 (DC C)	Grounding Indents Shielded	UL94 V-0	Copper Alloy	Black	Flash
EDAC Inc. 629-M37-340-LN6	Through Hole Right Angle	Polyamide (PA6T) Nylon 6T	Nickel Plated Steel	0.38 µm	15 µin	Male Pins Plug	2	37	-55 °C	125 °C	Signal	5 A	Solder	Combo D-Sub	4-40 Board Side	Gold	9.4 mm	0.37 in	4 (DC C)	Grounding Indents Mounting Brackets Shielded	UL94 V-0	Copper Alloy	Black
EDAC Inc. 629-M37-340-GN1	Through Hole Right Angle	Polyamide (PA6T) Nylon 6T	Nickel Plated Steel	0.38 µm	15 µin	Male Pins Plug	2	37	-55 °C	125 °C	Signal	5 A	Solder	Combo D-Sub	Housing/Shell (Unthreaded)	Gold	9.4 mm	0.37 in	4 (DC C)	Grounding Indents Shielded	UL94 V-0	Copper Alloy	Black
EDAC Inc. 629-M37-640-GT6	Through Hole Right Angle	Polyamide (PA6T) Nylon 6T		0.76 Ám	30 Áin	Male Pins Plug	2	37	-55 °C	125 °C	Signal	5 A	Solder	Combo D-Sub	4-40 Board Side	Gold	9.4 mm	0.37 in	4 (DC C)	Grounding Indents Mounting Brackets Shielded	UL94 V-0	Copper Alloy	Black
EDAC Inc. 629-M37-240-WT1	Through Hole Right Angle	Polyamide (PA6T) Nylon 6T				Male Pins Plug	2	37	-55 °C	125 °C	Signal	5 A	Solder	Combo D-Sub	Housing/Shell (Unthreaded)	Gold	9.4 mm	0.37 in	4 (DC C)	Grounding Indents Shielded	UL94 V-0	Copper Alloy	Black	Flash
EDAC Inc. 629-M37-640-WT6	Through Hole Right Angle	Polyamide (PA6T) Nylon 6T		0.76 Ám	30 Áin	Male Pins Plug	2	37	-55 °C	125 °C	Signal	5 A	Solder	Combo D-Sub	4-40 Board Side	Gold	9.4 mm	0.37 in	4 (DC C)	Grounding Indents Mounting Brackets Shielded	UL94 V-0	Copper Alloy	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 11.22

Description

General part information

629-M37 Series

37 Position D-Sub, Combo Plug, Male Pins Connector
