1056703-1

Active

TE Connectivity Aerospace, Defense and Marine

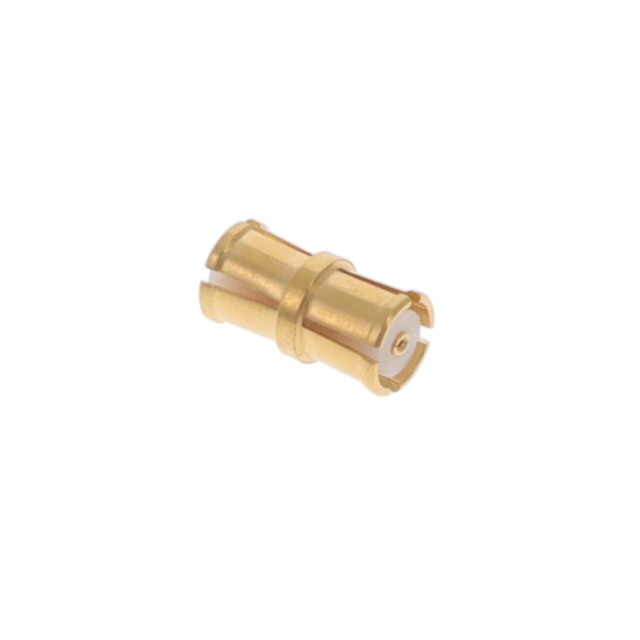

CONN ADAPT JACK-JACK OSMP 50 OHM

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN ADAPT JACK-JACK OSMP 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	1056703-1

Adapter Series	OSMP to OSMP
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	SMP Jack, Female Socket
Convert To (Adapter End)	Female Socket, SMP Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	40 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

CONN ADAPT JACK-JACK OSMP 50 OHM

Part	Convert To (Adapter End)	Conversion Type	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Fastening Type	Frequency - Max [Max]	Dielectric Material	Convert From (Adapter End)	Adapter Type	Impedance	Style	Center Gender	Body Material	Mounting Type	Center Contact Plating	Center Contact Material	Adapter Series
TE Connectivity Aerospace, Defense and Marine 1056703-1	Female Socket, SMP Jack	Same Series	125 °C	-65 ░C	Gold	Snap-On	40 GHz	Polytetrafluoroethylene (PTFE)	SMP Jack, Female Socket	Jack to Jack	50 Ohms	Straight	Female to Female	Beryllium Copper	Free Hanging (In-Line)	Gold	Beryllium Copper	OSMP to OSMP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.07

General part information

Adapter Coaxial Connector SMP Jack, Female Socket To SMP Jack, Female Socket 50 Ohms
