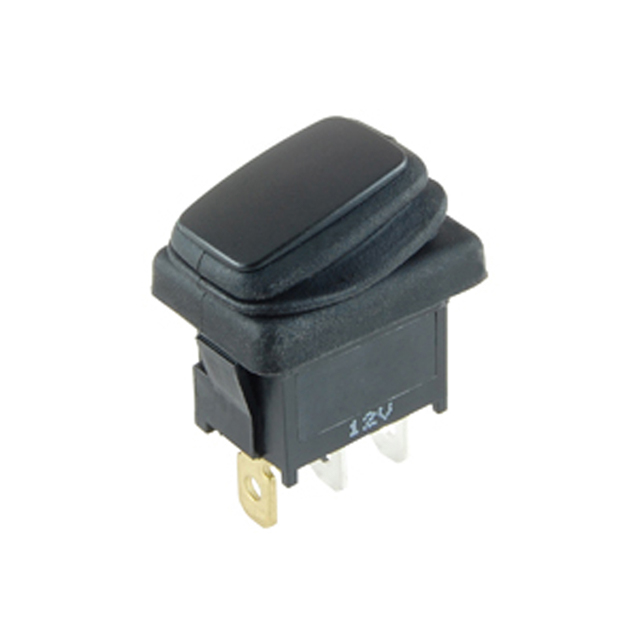

54-202W

Active

NTE Electronics, Inc

SWITCH ROCKER SPDT 16A 125V

Search across all available documentation for this part.

Active

NTE Electronics, Inc

SWITCH ROCKER SPDT 16A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	54-202W

Actuator Marking	No Marking
Actuator Type	Flat
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	16 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V

SWITCH ROCKER SPDT 16A 125V

Part	Current Rating (Amps)	Termination Style	Voltage Rating - AC	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Color - Actuator/Cap	Actuator Type	Mounting Type	Circuit	Ingress Protection
NTE Electronics, Inc 54-202W	16 A	Solder Lug	125 V	On-On	85 °C	-20 C	No Marking	Black	Flat	Panel Mount, Snap-In	SPDT	IP65 - Dust Tight, Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch SPDT 16A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
