HEW.LM.368.XLNP

Active

LEMO

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Search across all available documentation for this part.

Active

LEMO

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	HEW.LM.368.XLNP

Applications	Military, Aerospace, Automotive, Aviation
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	2.5 A
Features	Potted
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	68
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Orientation	W
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	368
Shielding	Shielded
Termination	Solder

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Part	Connector Type	Shielding	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Features	Mounting Feature	Insert Material	Shell Size - Insert	Color	Applications	Contact Material	Shell Material	Number of Positions	Ingress Protection	Contact Finish - Mating	Mounting Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Primary Material
LEMO HEW.LM.368.XLNP	Receptacle, Female Sockets	Shielded	2.5 A	-20 C	80 C	W	Potted	Bulkhead - Front Side Nut	Polyetheretherketone (PEEK)	368	Gray	Aerospace, Automotive, Aviation, Military	Bronze	Aluminum Alloy	68	IP68 - Dust Tight, Waterproof	Gold	Panel Mount, Through Hole	Solder	59 Áin	1.5 Ám	Nickel	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

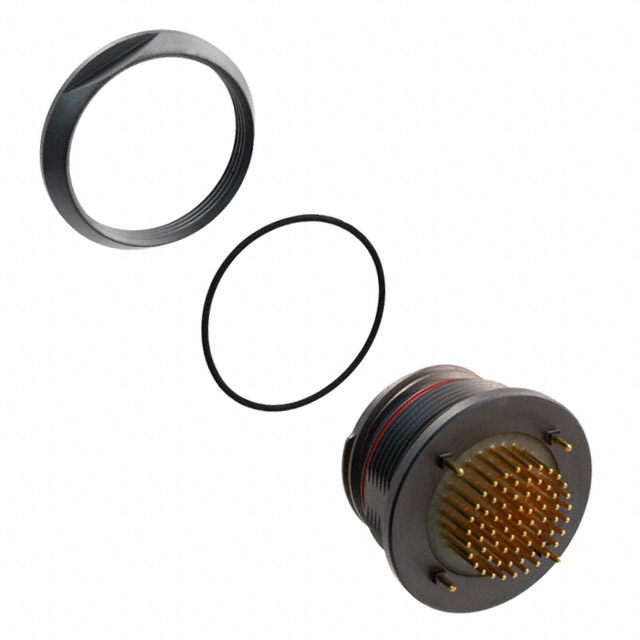

68 Position Circular Connector Receptacle, Female Sockets Solder
