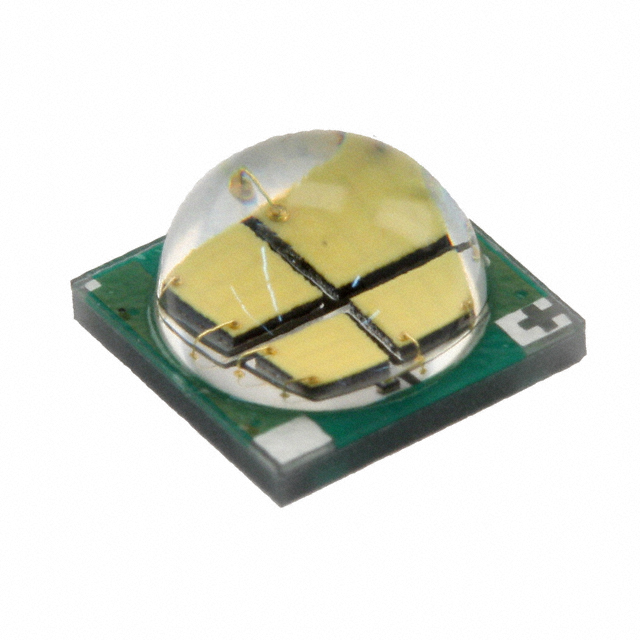

XMLEZW-02-0000-0B0HU240H
ObsoleteCree LED
LED EASYWHT NEU WHT 4000K 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
XMLEZW-02-0000-0B0HU240H
ObsoleteCree LED
LED EASYWHT NEU WHT 4000K 2SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XMLEZW-02-0000-0B0HU240H |
|---|---|
| CCT (K) | 4000 K |
| Color | Neutral, White |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 2 A |
| Flux @ 85°C, Current - Test | 310 lm |
| Flux @ 85°C, Current - Test [Max] | 320 lm |
| Flux @ 85°C, Current - Test [Min] | 300 lm |
| Height - Seated (Max) [Max] [z] | 0.124 in |
| Height - Seated (Max) [Max] [z] | 3.15 mm |
| Lumens/Watt @ Current - Test | 74 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 2020 |
| Package / Case | 5050 Metric |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Supplier Device Package | SMD |
| Thermal Resistance of Package | 2.5 °C/W |
| Viewing Angle | 115 ° |
| Voltage - Forward (Vf) (Typ) | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
XMLEZW-02-0000-0B0HU240H
LED Lighting EasyWhite™, XLamp® XM-L White, Neutral 4000K 2-Step MacAdam Ellipse 6V 700mA 115° 2020 (5050 Metric)
