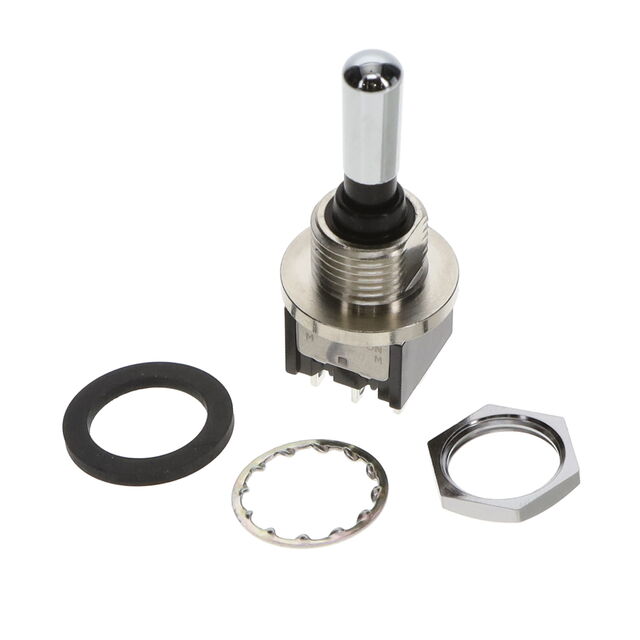

Specification	MN28WBW01

Actuator Length	20 mm
Actuator Material	Chrome Plated, Brass
Actuator Type	Standard Round
Bushing Thread	M12 x 1
Bushing Thread Diameter	12 mm
Bushing Thread Pitch	1 mm
Circuit	DPDT
Current Rating	3 A, 4 A
Electrical Life (Cycles)	25000
Illumination	Non-Illuminated
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Panel Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Panel Cutout Diameter	12.5 mm
Panel Cutout Shape	Circular
Switch Function	Mom-Off-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V
