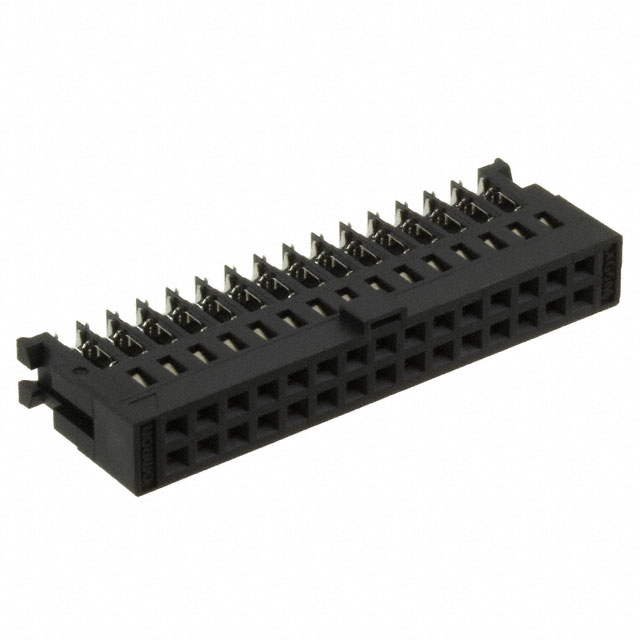

XG5M-2035-N
ActiveOmron Electronics Inc-EMC Div
CONN RCPT 20P IDC 26-28AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
XG5M-2035-N
ActiveOmron Electronics Inc-EMC Div
CONN RCPT 20P IDC 26-28AWG GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XG5M-2035-N |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 5.9 µin |
| Contact Finish Thickness | 0.15 µm |
| Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 4.96 | |
Description
General part information
XG5M-2035-N
20 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG
