9519 060100

Active

Belden Inc.

MULTI-PAIR 38COND 24AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 38COND 24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9519 060100

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	11.38 mm
Jacket (Insulation) Diameter [diameter]	0.448 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.864 mm
Jacket (Insulation) Thickness	0.034 in
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	38
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Shield Type	Voltage	Ratings	Usage	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Conductor Material	Shield Material	Length [x]	Length [x]	Jacket Color	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Jacket (Insulation) Material
Belden Inc. 9519 060100	Foil	300 V	UL Style 2464	Computer	Poly-Vinyl Chloride (PVC)	32 AWG	7	100 %	Copper Tinned	Aluminum	30.5 m	100 ft	Chrome	24 AWG	-30 ░C	80 C	Multi-Pair	Drain Wire	0.864 mm	0.034 in	11.38 mm	0.448 in	38	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 14.52

General part information

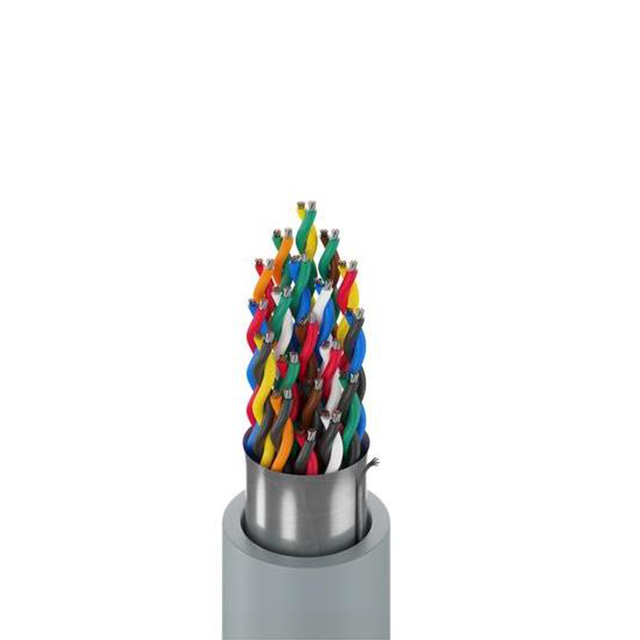

38 (19 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil 100.0' (30.5m)
