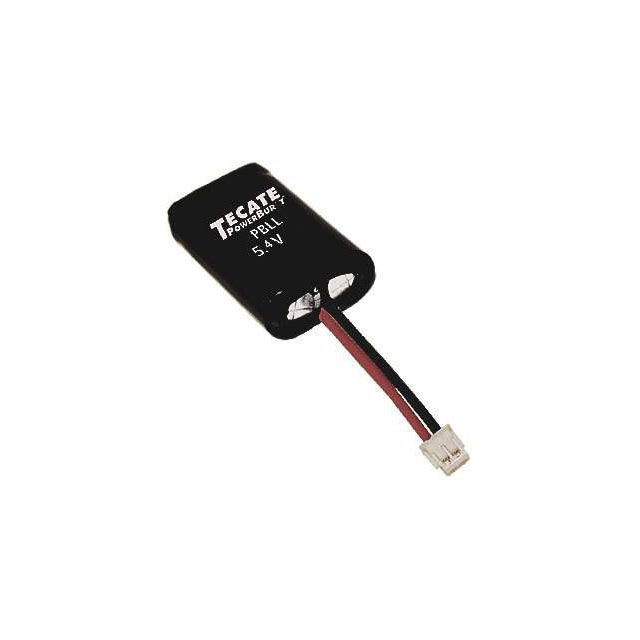

SCAP,PBLL-2.5/5.4
ActiveTecate Group
CAP 2.5F 5.4V UCAP PACK
SCAP,PBLL-2.5/5.4
ActiveTecate Group
CAP 2.5F 5.4V UCAP PACK
Description
General part information
SCAP,PBLL-2.5/5.4
2.5 F (EDLC) Supercapacitor 5.4 V Radial, Can 245mOhm @ 1kHz 1000 Hrs @ 65°C
Technical Specifications
Parameters and characteristics for this part
| Specification | SCAP,PBLL-2.5/5.4 |
|---|---|
| Capacitance | 2.5 F |
| ESR (Equivalent Series Resistance) | 245 mOhm |
| Height - Seated (Max) | 0.984 in |
| Lifetime | 1000 Hrs |
| Mounting Type | User Defined |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Size / Dimension Length | 0.866 in |
| Size / Dimension Width | 0.472 in |
| Termination | Wire Leads with Connector |
| Voltage - Rated | 5.4 V |
