ZL40260QGG1

Active

Microchip Technology

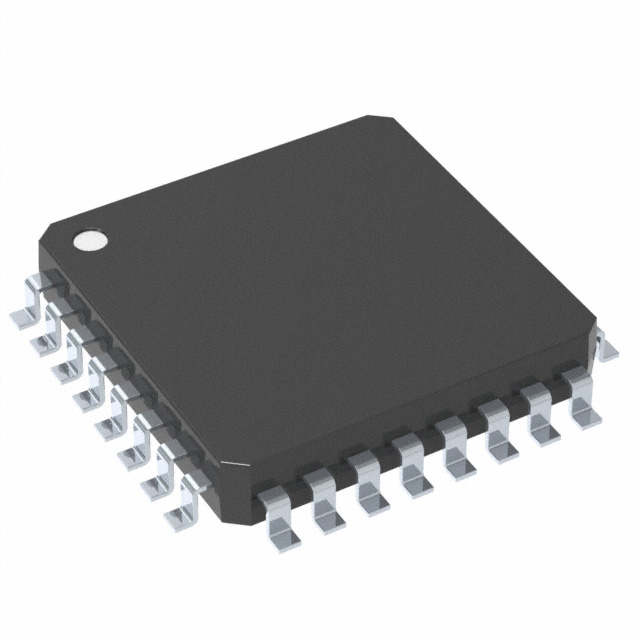

IC CLK BUF 2:10 1.6GHZ 32ETQFP

Search across all available documentation for this part.

Active

Microchip Technology

IC CLK BUF 2:10 1.6GHZ 32ETQFP

Technical Specifications

Parameters and characteristics for this part

Specification	ZL40260QGG1

Differential - Input:Output [custom]	True
Differential - Input:Output [custom]	True
Frequency - Max [Max]	1.6 GHz
Input	HCSL, LVDS, LVPECL, SSTL, CML, LVCMOS
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVPECL
Package / Case	32-TQFP Exposed Pad
Ratio - Input:Output [custom]	10
Ratio - Input:Output [custom]	2
Type	Fanout Buffer (Distribution), Multiplexer
Voltage - Supply [Max]	2.625 V, 3.465 V
Voltage - Supply [Min]	2.375 V, 3.135 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.66

IC CLK BUF 2:10 1.6GHZ 32ETQFP

Part	Ratio - Input:Output [custom]	Ratio - Input:Output [custom]	Frequency - Max [Max]	Input	Type	Output	Differential - Input:Output [custom]	Differential - Input:Output [custom]	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
Microchip Technology ZL40260QGG1	10	2	1.6 GHz	CML, HCSL, LVCMOS, LVDS, LVPECL, SSTL	Fanout Buffer (Distribution), Multiplexer	LVPECL			32-TQFP Exposed Pad	2.625 V, 3.465 V	2.375 V, 3.135 V	1	85 °C	-40 °C	Surface Mount

General part information

Clock Fanout Buffer (Distribution), Multiplexer IC 2:10 1.6 GHz 32-TQFP Exposed Pad
