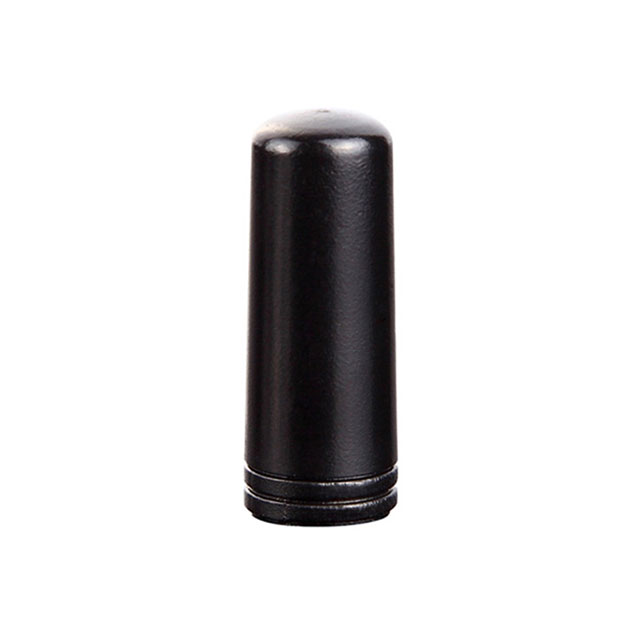

RST-W2A8-259095-1M-X-001
ActiveRaltron Electronics
RF ANT 2.4GHZ WHIP STR SMA MALE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RST-W2A8-259095-1M-X-001
ActiveRaltron Electronics
RF ANT 2.4GHZ WHIP STR SMA MALE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RST-W2A8-259095-1M-X-001 |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | Bluetooth, Wi-Fi, 802.15.4 |
| Frequency Range [Max] | 2.4835 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 2 dBic |
| Height (Max) | 25.9 mm |
| Height (Max) [Max] | 1.02 in |
| Ingress Protection | IP67, IP66 |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.00 | |
| 10 | $ 3.59 | |||
| 50 | $ 3.40 | |||
| 100 | $ 2.94 | |||
| 250 | $ 2.79 | |||
| 500 | $ 2.51 | |||
| 1000 | $ 2.11 | |||
| 2500 | $ 2.01 | |||
| 5000 | $ 1.93 | |||
Description
General part information
RST-W2A8-259095-1M-X-001
RF ANTENNA 802.15.4, Bluetooth, Wi-Fi Whip, Straight SMA Male Connector Mount
