917787-1

Active

TE Connectivity AMP Connectors

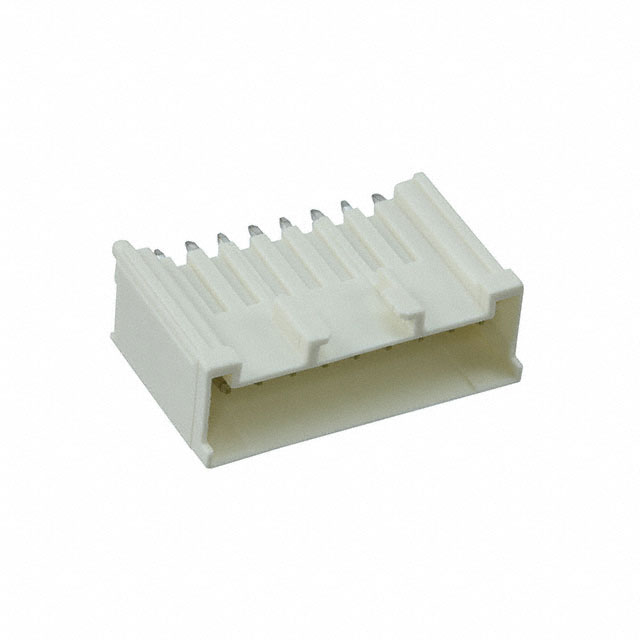

CONN HEADER VERT 9POS 2.5MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 9POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	917787-1

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.185 in
Contact Length - Mating	4.7 mm
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Natural
Insulation Height	9.8 mm
Insulation Height	0.386 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	13.7 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Overall Contact Length	0.41 in
Overall Contact Length	10.41 mm
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	50 V

CONN HEADER VERT 9POS 2.5MM

Part	Voltage Rating	Fastening Type	Style	Contact Finish - Post	Number of Rows	Connector Type	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Current Rating (Amps)	Contact Type	Number of Positions	Insulation Material	Pitch - Mating	Pitch - Mating	Shrouding	Contact Material	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post [x]	Mated Stacking Heights	Number of Positions Loaded	Features	Termination	Mounting Type	Contact Shape	Applications	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity AMP Connectors 917787-1	50 V	Latch Holder	Board to Cable/Wire	Tin	1	Header	9.8 mm	0.386 in	0.185 in	4.7 mm	UL94 V-0	3 A	Male Pin	9	Polyamide (PA66), Nylon 6/6, Glass Filled	2.5 mm	0.098 in	Shrouded - 4 Wall	Copper Alloy	0.41 in	10.41 mm	3.2 mm	0.126 in	13.7 mm	All	Board Guide	Kinked Pin, Solder	Through Hole	Square	General Purpose	Natural	-30 ░C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 9 position 0.098" (2.50mm)
