034-1055

Active

AMPHENOL RF

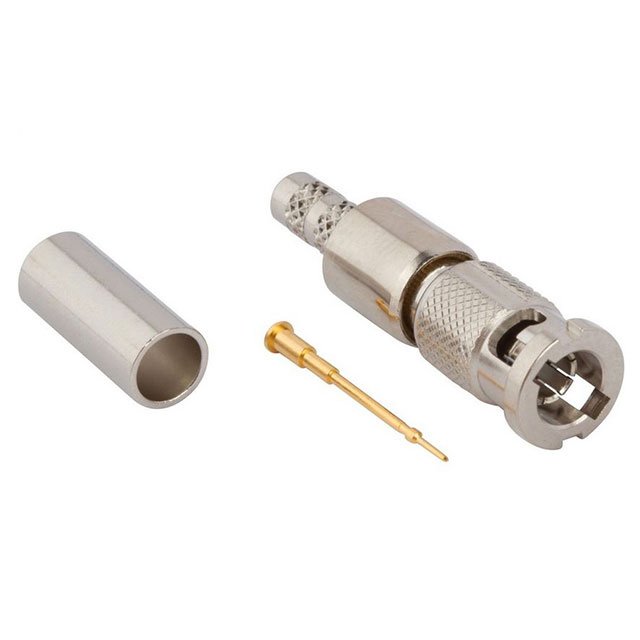

CONN HDBNC PLUG STR 75 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

034-1055

Active

AMPHENOL RF

CONN HDBNC PLUG STR 75 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.03
		10	$ 10.67
		25	$ 10.26
		50	$ 9.85
		100	$ 9.30
		300	$ 8.48
		500	$ 7.93
		1000	$ 7.27

Description

General part information

034-10 Series

BNC, HD Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	034-1055	034-10 Series

Body Finish	Nickel	Gold, Nickel
Body Material	Brass	Brass
Cable Group	AT&T 735, 735A, Belden 735A1	195, Belden 1855, 180B, 1865A, 180A, 180, RG-122, Belden 1695A, 1694A, Belden 1694, 9248, Belden 1505A, AT&T 734, 734A, AT&T 735, 735A, Belden 735A1, 179A, 187A, 187, M17/94-RG179, RG-179, Belden 9221, 179B, Times Fiber 210
Center Contact Material	Phosphor Bronze	Beryllium Copper, Phosphor Bronze
Center Contact Plating	Gold	Gold
Connector Style	HD, BNC	HD, BNC
Connector Type	Male Pin, Plug	Receptacle, Female Socket, Jack, Male Pin, Plug
Contact Termination	Crimp	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	6000 MHz	3 - 6000 GHz
Housing Color	Silver	Gold, Silver
Impedance	75 Ohms	75 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector	1 Nut, 1 Connector, 1 Ferrule, 1 Contact, 1 Lockwasher, Ferrule, Nut, Connector
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Mating Cycles	500	500
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Through Hole, Panel Mount, Right Angle, Free Hanging (In-Line), End Launch, Board Edge
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Solder, Crimp
Voltage Rating	-	335 V

034-10 Series

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT JACK, THROUGH HOLE VERTICAL, 75 OHM, BERYLLIUM COPPER

Part	Shield Termination	Fastening Type	Body Finish	Impedance	Body Material	Connector Type	Contact Termination	Mounting Type	Frequency - Max [Max]	Voltage Rating	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Number of Ports	Connector Style	Housing Color	Center Contact Material	Center Contact Plating	Includes	Mounting Feature	Cable Group
AMPHENOL RF 034-1024	Solder	Bayonet Lock	Gold	75 Ohms	Brass	Female Socket, Receptacle	Solder	Through Hole	4.5 GHz	335 V	500	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	BNC, HD	Gold	Beryllium Copper	Gold
AMPHENOL RF 034-1028H-12G	Solder	Bayonet Lock	Gold	75 Ohms	Brass	Female Socket, Jack	Solder	Panel Mount, Through Hole	18 GHz		500	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	BNC, HD	Gold	Beryllium Copper	Gold	1 Connector, 1 Nut	Bulkhead - Front Side Nut
AMPHENOL RF 034-1030	Solder	Bayonet Lock	Gold, Nickel	75 Ohms	Brass	Female Socket, Jack	Solder	Panel Mount, Right Angle, Through Hole	4.5 GHz		500	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	BNC, HD	Gold, Silver	Beryllium Copper	Gold	1 Connector, 1 Nut	Bulkhead - Front Side Nut
AMPHENOL RF 034-1028-12G	Solder	Bayonet Lock	Gold	75 Ohms	Brass	Female Socket, Jack	Solder	Panel Mount, Through Hole	18 GHz		500	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	BNC, HD	Gold	Beryllium Copper	Gold	1 Connector, 1 Nut	Bulkhead - Front Side Nut
AMPHENOL RF 034-1037	Crimp	Bayonet Lock	Nickel	75 Ohms	Brass	Male Pin, Plug	Crimp	Free Hanging (In-Line)	4 GHz		500	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	BNC, HD	Silver	Phosphor Bronze	Gold	1 Connector, 1 Contact, 1 Ferrule		180, 180A, 180B, 1865A, 195, Belden 1855, RG-122
AMPHENOL RF 034-1032	Solder	Bayonet Lock	Gold	75 Ohms	Brass	Female Socket, Receptacle	Solder	Through Hole	4.5 GHz	335 V	500	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	BNC, HD	Gold	Beryllium Copper	Gold
AMPHENOL RF 034-1027	Crimp	Bayonet Lock	Nickel	75 Ohms	Brass	Male Pin, Plug	Crimp	Free Hanging (In-Line)	4 GHz		500	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	BNC, HD	Silver	Phosphor Bronze	Gold	1 Connector, 1 Contact, 1 Ferrule		Belden 1695A
AMPHENOL RF 034-1017-300	Crimp	Bayonet Lock	Nickel	75 Ohms	Brass	Male Pin, Plug	Crimp	Free Hanging (In-Line)	3 GHz		500	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	BNC, HD	Silver	Phosphor Bronze	Gold	1 Connector, 1 Contact, 1 Ferrule		1694A, 9248, Belden 1694
AMPHENOL RF 034-1065-12G	Solder	Bayonet Lock	Gold	75 Ohms	Brass	Female Socket, Jack	Solder	Through Hole	18 GHz		500	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	BNC, HD	Gold	Beryllium Copper	Gold
AMPHENOL RF 034-1030-12G	Solder	Bayonet Lock	Gold, Nickel	75 Ohms	Brass	Female Socket, Jack	Solder	Panel Mount, Right Angle, Through Hole	18 GHz		500	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	BNC, HD	Gold, Silver	Beryllium Copper	Gold	1 Connector, 1 Nut	Bulkhead - Front Side Nut
