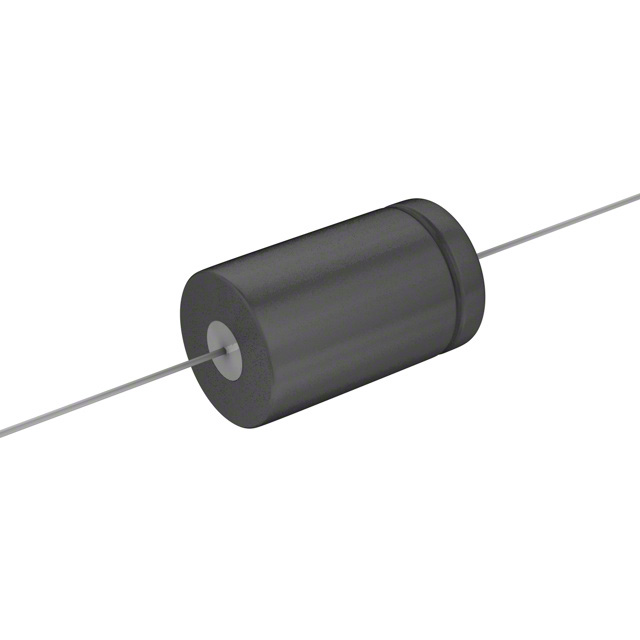

TC75102
ObsoleteCornell Dubilier Knowles
CAP ALUM 1000UF 75V AXIAL TH
TC75102
ObsoleteCornell Dubilier Knowles
CAP ALUM 1000UF 75V AXIAL TH
Description
General part information
TC75102
1000 µF 75 V Aluminum Electrolytic Capacitors Axial, Can 100mOhm @ 120Hz 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | TC75102 |
|---|---|
| Applications | General Purpose |
| Capacitance | 1000 µF |
| ESR (Equivalent Series Resistance) | 100 mOhm |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 2.72 A, 2.344 A |
| Size / Dimension Diameter | 1 in |
| Size / Dimension Length | 1.625 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 75 % |
| Voltage - Rated | 75 V |
