ESP8266-DEVKITS

Active

Espressif Systems

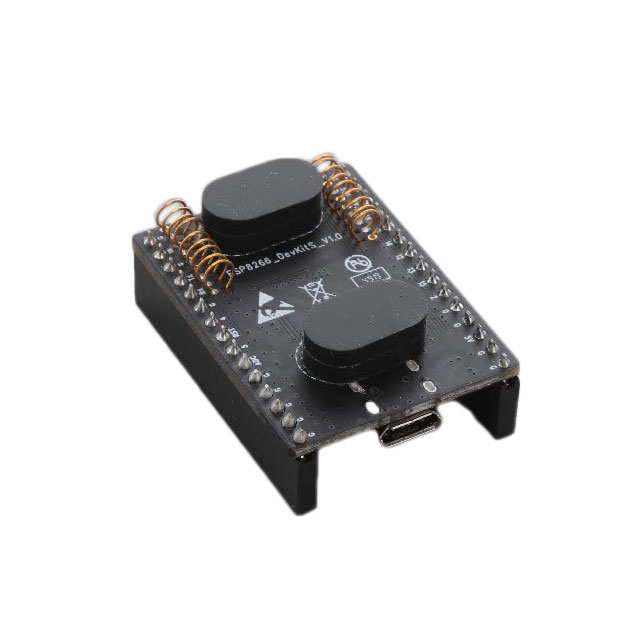

ESP8266 WROOM FLASHING BOARD

Search across all available documentation for this part.

Active

Espressif Systems

ESP8266 WROOM FLASHING BOARD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ESP8266-DEVKITS	ESP8266 Series

Contents	Board(s)	Board(s)
Current - Receiving	-	50 mA
Current - Receiving	-	56 mA
Current - Transmitting	-	170 mA
Current - Transmitting	-	120 mA
Data Rate (Max)	-	54 Mbps
For Use With/Related Products	ESP-WROOM-02	ESP-WROOM-02, ESP8266, ESP-WROOM-02U, ESP-WROOM-02D
Frequency	-	2.4 GHz
GPIO	-	8
Mounting Type	-	Surface Mount
Note	Note: Not recommended for mass production use	Note: Not recommended for mass production use
Package / Case	-	32-VFQFN Exposed Pad
Power - Output	-	20 dBm
Protocol	-	802.11b/g/n
RF Family/Standard	-	WiFi
Sensitivity	-	-91 dBm
Serial Interfaces	-	SPI, I2C, I2S, UART
Supplied Contents	-	Board(s)
Supplier Device Package	-	32-QFN (5x5)
Type	Programmer	Programmer, TxRx + MCU, Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)
Voltage - Supply	-	3.6 V
Voltage - Supply	-	2.5 V

ESP8266 WROOM FLASHING BOARD

Part	Note	Type	For Use With/Related Products	Contents	RF Family/Standard	Current - Receiving [Min]	Current - Receiving [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Transmitting [Max]	Current - Transmitting [Min]	Data Rate (Max) [Max]	Package / Case	Protocol	Power - Output	Supplier Device Package	GPIO	Frequency	Sensitivity	Serial Interfaces	Mounting Type	Supplied Contents
Espressif Systems ESP8266-DEVKITS	Note: Not recommended for mass production use	Programmer	ESP-WROOM-02	Board(s)
Espressif Systems ESP8266EX		TxRx + MCU			WiFi	50 mA	56 mA	3.6 V	2.5 V	170 mA	120 mA	54 Mbps	32-VFQFN Exposed Pad	802.11b/g/n	20 dBm	32-QFN (5x5)	8	2.4 GHz	-91 dBm	I2C, I2S, SPI, UART	Surface Mount
Espressif Systems ESP8266-DEVKITC-02U-F		Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)	ESP-WROOM-02U, ESP8266															2.4 GHz				Board(s)
Espressif Systems ESP8266-DEVKITC-02D-F		Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)	ESP-WROOM-02D, ESP8266															2.4 GHz				Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 8.50

General part information

ESP-WROOM-02 - Programmer
