CS70-14-CY
ObsoletePanduit Corp
CONN TERM RECT LUG 2-8 AWG #1/4
CS70-14-CY
ObsoletePanduit Corp
CONN TERM RECT LUG 2-8 AWG #1/4
Description
General part information
CS70-14-CY

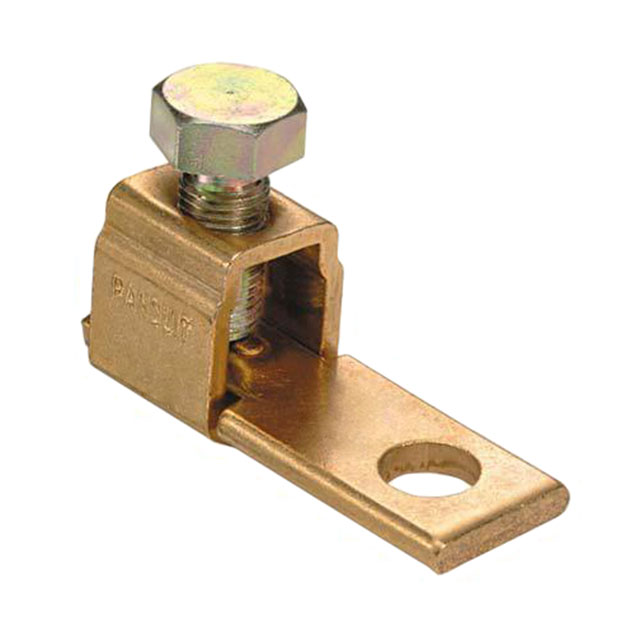

Terminal Connector Rectangular Lug, Grounding 2-8 AWG 1/4 Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | CS70-14-CY |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | With Screw |
| Insulation | Non-Insulated |
| Length - Overall | 1.3 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.25 Stud |
| Tab Thickness | 0.08 in |
| Terminal Style | Single Stud Hole |
| Terminal Type | Lug, Grounding |
| Termination | Screw |
| Width - Outer Edges | 0.5 in |
| Wire Gauge (AWG) (Max) | 8 AWG |
| Wire Gauge (AWG) (Min) | 2 AWG |
