A3BKB-4018G
ActiveTE Connectivity AMP Connectors
IDC CABLE- ASR40B/AE40G/APK40B
Deep-Dive with AI
Search across all available documentation for this part.
A3BKB-4018G
ActiveTE Connectivity AMP Connectors
IDC CABLE- ASR40B/AE40G/APK40B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A3BKB-4018G | A3BKB Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Ribbon, Multiple |
| Connector Type | Socket to Plug | Socket to Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 15 µin | 15 µin |
| Contact Finish Thickness | 0.38 µm | 0.38 µm |
| Features | Polarizing Key (Plug), Strain Relief (Socket) | Polarizing Key (Plug), Strain Relief (Socket) |
| Length | - | 152.4 mm |
| Length | - | 6 " |
| Length | - | 0.5 ' |
| Length [x] | 457.2 mm | 457.2 - 914.4 mm |
| Length [x] | 1.5 ft | 1.5 - 3 ft |
| Number of Positions | 40 | 10 - 50 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.07 | |
| 10 | $ 20.77 | |||
| 25 | $ 19.28 | |||
| 50 | $ 18.22 | |||
| 100 | $ 17.23 | |||
| 250 | $ 16.00 | |||
| 500 | $ 15.20 | |||
A3BKB Series
IDC CABLE- ASR16B/AE16G/APK16B
| Part | Cable Termination | Length | Length | Length | Number of Positions | Pitch - Connector | Pitch - Connector | Contact Finish | Number of Rows | Connector Type | Pitch - Cable | Pitch - Cable | Contact Finish Thickness | Contact Finish Thickness | Shielding | Features | Length [x] | Length [x] | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A3BKB-1606G | IDC | 152.4 mm | 6 " | 0.5 ' | 16 | 0.1 in | 2.54 mm | Gold | 2 | Socket to Plug | 0.05 " | 1.27 mm | 15 µin | 0.38 µm | Unshielded | Polarizing Key (Plug), Strain Relief (Socket) | ||||
TE Connectivity AMP Connectors A3BKB-2636M | IDC | 0.1 in | 2.54 mm | Gold | 2 | Socket to Plug | 0.05 " | 1.27 mm | 15 µin | 0.38 µm | Unshielded | Polarizing Key (Plug), Strain Relief (Socket) | 3 ft | 914.4 mm | Multiple, Ribbon | 26 | ||||
TE Connectivity AMP Connectors A3BKB-4018G | IDC | 0.1 in | 2.54 mm | Gold | 2 | Socket to Plug | 0.05 " | 1.27 mm | 15 µin | 0.38 µm | Unshielded | Polarizing Key (Plug), Strain Relief (Socket) | 1.5 ft | 457.2 mm | 40 | |||||
TE Connectivity AMP Connectors A3BKB-1036M | IDC | 0.1 in | 2.54 mm | Gold | 2 | Socket to Plug | 0.05 " | 1.27 mm | 15 µin | 0.38 µm | Unshielded | Polarizing Key (Plug), Strain Relief (Socket) | 3 ft | 914.4 mm | Multiple, Ribbon | 10 | ||||
TE Connectivity AMP Connectors A3BKB-3006G | IDC | 152.4 mm | 6 " | 0.5 ' | 0.1 in | 2.54 mm | Gold | 2 | Socket to Plug | 0.05 " | 1.27 mm | 15 µin | 0.38 µm | Unshielded | Polarizing Key (Plug), Strain Relief (Socket) | 30 | ||||
TE Connectivity AMP Connectors A3BKB-2036G | IDC | 0.1 in | 2.54 mm | Gold | 2 | Socket to Plug | 0.05 " | 1.27 mm | 15 µin | 0.38 µm | Unshielded | Polarizing Key (Plug), Strain Relief (Socket) | 3 ft | 914.4 mm | 20 | |||||
TE Connectivity AMP Connectors A3BKB-1036G | IDC | 0.1 in | 2.54 mm | Gold | 2 | Socket to Plug | 0.05 " | 1.27 mm | 15 µin | 0.38 µm | Unshielded | Polarizing Key (Plug), Strain Relief (Socket) | 3 ft | 914.4 mm | 10 | |||||
TE Connectivity AMP Connectors A3BKB-1636M | IDC | 16 | 0.1 in | 2.54 mm | Gold | 2 | Socket to Plug | 0.05 " | 1.27 mm | 15 µin | 0.38 µm | Unshielded | Polarizing Key (Plug), Strain Relief (Socket) | 3 ft | 914.4 mm | Multiple, Ribbon | ||||
TE Connectivity AMP Connectors A3BKB-3036M | IDC | 0.1 in | 2.54 mm | Gold | 2 | Socket to Plug | 0.05 " | 1.27 mm | 15 µin | 0.38 µm | Unshielded | Polarizing Key (Plug), Strain Relief (Socket) | 3 ft | 914.4 mm | Multiple, Ribbon | 30 | ||||
TE Connectivity AMP Connectors A3BKB-1406M | IDC | 152.4 mm | 6 " | 0.5 ' | 0.1 in | 2.54 mm | Gold | 2 | Socket to Plug | 0.05 " | 1.27 mm | 15 µin | 0.38 µm | Unshielded | Polarizing Key (Plug), Strain Relief (Socket) | Multiple, Ribbon | 14 |
Description
General part information
A3BKB Series

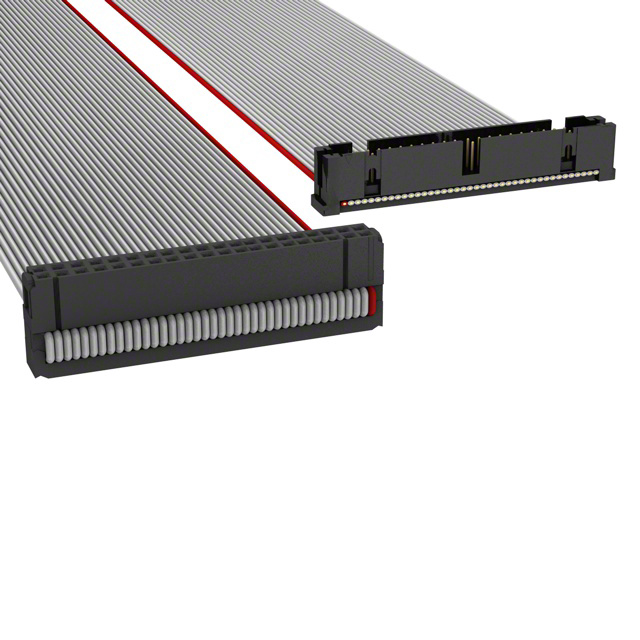

40 Position Cable Assembly Rectangular Socket to Plug 1.50' (457.20mm)
