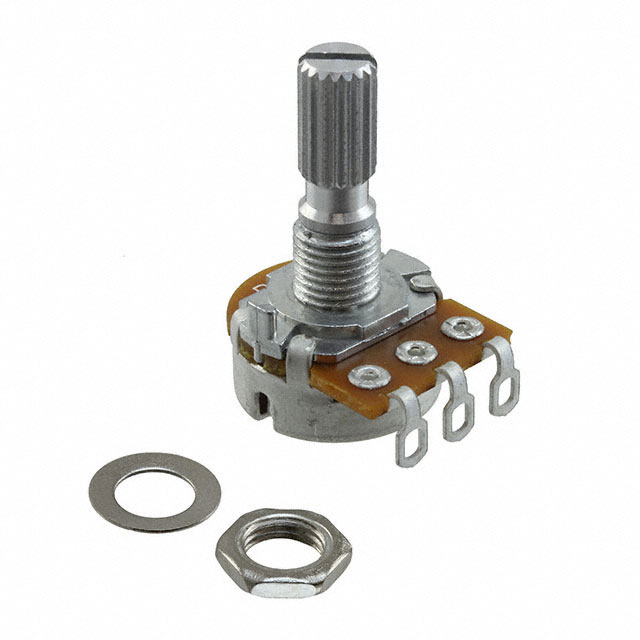

P160KNP-0QC20B500K
ActiveTT Electronics/BI
POT 500K OHM 1/5W PLASTIC LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P160KNP-0QC20B500K
ActiveTT Electronics/BI
POT 500K OHM 1/5W PLASTIC LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | P160KNP-0QC20B500K | P160K Series |
|---|---|---|
| Actuator Diameter [diameter] | 0.236 in | 0.236 in |
| Actuator Diameter [diameter] | 6 mm | 6 mm |
| Actuator Length | - | 15 mm |
| Actuator Length | - | 10 - 25 mm |
| Actuator Length | - | 0.394 - 0.984 in |
| Actuator Length [z] | 20 mm | 17 - 20 mm |
| Actuator Length [z] | 0.787 in | 0.591 - 0.787 in |
| Actuator Type | Knurled and Slotted | Knurled and Slotted, Slotted, Flatted |
| Adjustment Type | User Defined | Side Adjustment, User Defined, Rear Adjustment |
| Built in Switch | False | False |
| Built in Switch | - | Detent |
| Bushing Thread | 0.75 | 0.75 |
| Bushing Thread | M7 | M7 |
| Number of Gangs | 1 | 1 |
| Number of Turns | 1 | 1 |
| Power (Watts) | 0.2 W | 0.1 - 0.2 W |
| Power (Watts) | 1/5 | 1/5 |
| Power (Watts) | - | 0.1 W |
| Resistance (Ohms) | 500 kOhms | 1 - 500 kOhms |
| Resistance (Ohms) | - | 10k, 1M, 2k, 250k, 25k, 4.7k |
| Resistive Material | Conductive Plastic | Conductive Plastic |
| Rotation | 300 ░ | 300 ░ |
| Size - Body | Round | Round |
| Size - Body | - | 0.374 in |
| Size - Body | - | 9.5 mm |
| Size - Body [diameter] | 17 mm | 17 mm |
| Size - Body [diameter] | 0.669 in | 0.669 in |
| Taper | Linear | Linear, Reverse Logarithmic, Logarithmic |
| Termination Style | Solder Lug | PC Pins, Solder Lug |
| Tolerance | 20 % | 20 % |
P160K Series
POT 1K OHM 1/5W PLASTIC LINEAR
| Part | Bushing Thread | Bushing Thread | Number of Turns | Resistive Material | Rotation | Actuator Type | Size - Body [diameter] | Size - Body | Size - Body [diameter] | Actuator Length [z] | Actuator Length | Resistance (Ohms) | Number of Gangs | Built in Switch | Termination Style | Power (Watts) | Power (Watts) | Tolerance | Taper | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Adjustment Type | Resistance (Ohms) | Size - Body [z] | Size - Body [z] | Power (Watts) | Built in Switch | Actuator Length [z] | Actuator Length [x] | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TT Electronics/BI P160KN-0QD15B1K | 0.75 | M7 | 1 | Conductive Plastic | 300 ░ | Knurled and Slotted | 17 mm | Round | 0.669 in | 0.591 in | 15 mm | 1 kOhms | 1 | PC Pins | 0.2 W | 1/5 | 20 % | Linear | 0.236 in | 6 mm | Side Adjustment | |||||||||
TT Electronics/BI P160KNP-0EC15B10K | 0.75 | M7 | 1 | Conductive Plastic | 300 ░ | Slotted | 17 mm | Round | 0.669 in | 0.591 in | 15 mm | 1 | Solder Lug | 0.2 W | 1/5 | 20 % | Linear | 0.236 in | 6 mm | User Defined | 10k | |||||||||
TT Electronics/BI P160KNP-0QC15B5K | 0.75 | M7 | 1 | Conductive Plastic | 300 ░ | Knurled and Slotted | 17 mm | 0.669 in | 0.591 in | 15 mm | 5 kOhms | 1 | Solder Lug | 0.2 W | 1/5 | 20 % | Linear | 0.236 in | 6 mm | User Defined | 0.374 in | 9.5 mm | ||||||||
TT Electronics/BI P160KN2-0QC15B1MEG | 0.75 | M7 | 1 | Conductive Plastic | 300 ░ | Knurled and Slotted | 17 mm | Round | 0.669 in | 0.591 in | 15 mm | 1 | PC Pins | 0.2 W | 1/5 | 20 % | Linear | 0.236 in | 6 mm | Side Adjustment | 1M | |||||||||
TT Electronics/BI P160KNP-0QC15C100K | 0.75 | M7 | 1 | Conductive Plastic | 300 ░ | Knurled and Slotted | 17 mm | Round | 0.669 in | 0.591 in | 15 mm | 100 kOhms | 1 | Solder Lug | 0.1 W | 20 % | Reverse Logarithmic | 0.236 in | 6 mm | User Defined | 0.1 W | |||||||||
TT Electronics/BI P160KNP-0EC15C100K | 0.75 | M7 | 1 | Conductive Plastic | 300 ░ | Slotted | 17 mm | Round | 0.669 in | 0.591 in | 15 mm | 100 kOhms | 1 | Solder Lug | 0.1 W | 20 % | Reverse Logarithmic | 0.236 in | 6 mm | User Defined | 0.1 W | |||||||||
TT Electronics/BI P160KNPD-4FC20B10K | 0.75 | M7 | 1 | Conductive Plastic | 300 ░ | Flatted | 17 mm | Round | 0.669 in | 0.787 in | 1 | PC Pins | 0.2 W | 1/5 | 20 % | Linear | 0.236 in | 6 mm | Rear Adjustment | 10k | Detent | 20 mm | ||||||||
TT Electronics/BI P160KNP-02D20B100K | 0.75 | M7 | 1 | Conductive Plastic | 300 ░ | Knurled and Slotted | 0.787 in | 100 kOhms | 1 | Solder Lug | 0.2 W | 1/5 | 20 % | Linear | 0.236 in | 6 mm | User Defined | 20 mm | ||||||||||||
TT Electronics/BI P160KNP-0EB10B100K | 0.75 | M7 | 1 | Conductive Plastic | 300 ░ | Slotted | 17 mm | Round | 0.669 in | 100 kOhms | 1 | Solder Lug | 0.2 W | 1/5 | 20 % | Linear | 0.236 in | 6 mm | User Defined | 10 mm | 0.394 in | |||||||||
TT Electronics/BI P160KN2-0QC17B10 | 0.75 | M7 | 1 | Conductive Plastic | 300 ░ | Knurled and Slotted | 17 mm | Round | 0.669 in | 0.669 in | 10 Ohms | 1 | PC Pins | 0.2 W | 1/5 | 20 % | Linear | 0.236 in | 6 mm | Side Adjustment | 17 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.56 | |
| 10 | $ 0.51 | |||
| 25 | $ 0.46 | |||
| 40 | $ 0.44 | |||
| 80 | $ 0.42 | |||
| 230 | $ 0.40 | |||
| 440 | $ 0.38 | |||
| 1100 | $ 0.31 | |||
| 5500 | $ 0.29 | |||
Description
General part information
P160K Series
500k Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Conductive Plastic 0.2W, 1/5W Solder Lug
