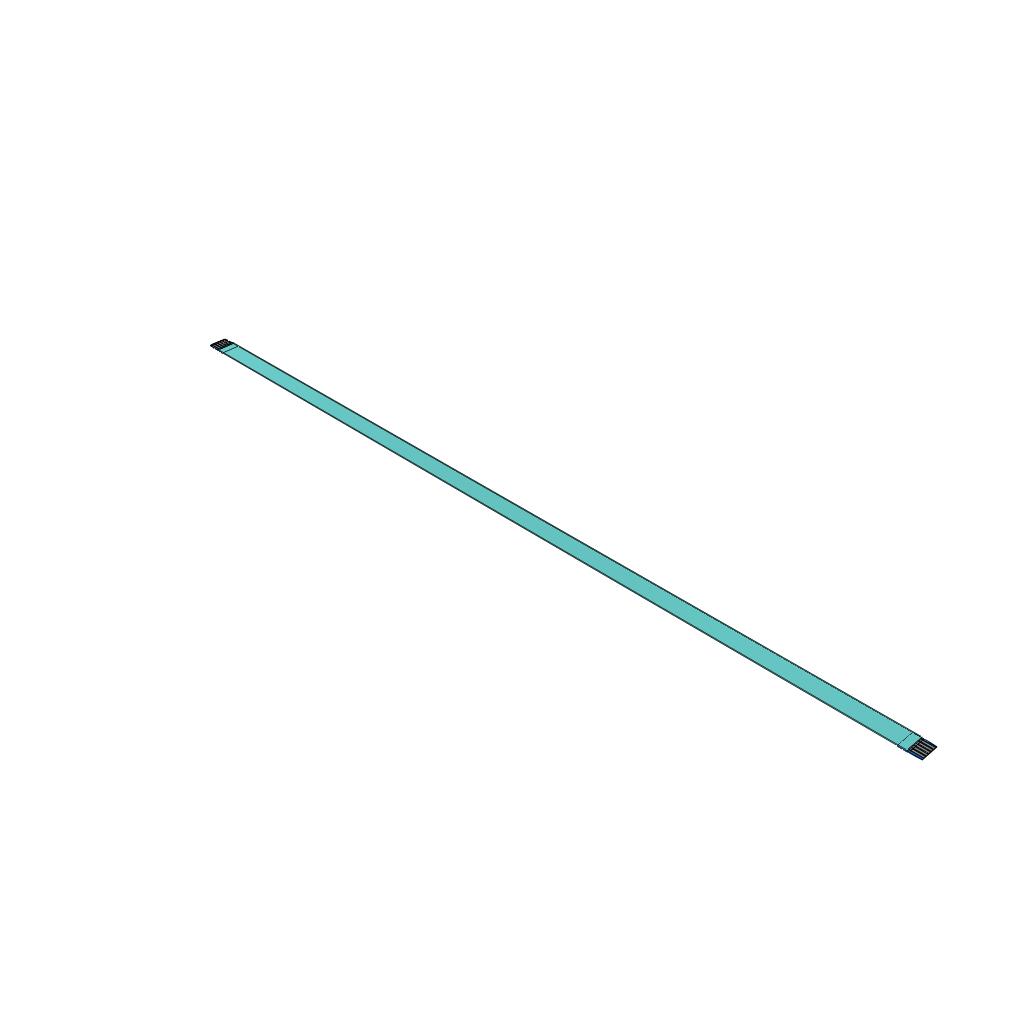

FJ-05-D-31.00-4

Active

Samtec Inc.

CABLE FFC/FPC 5POS 1MM 31"

Search across all available documentation for this part.

Active

Samtec Inc.

CABLE FFC/FPC 5POS 1MM 31"

Technical Specifications

Parameters and characteristics for this part

Specification	FJ-05-D-31.00-4

Cable Type	FPC, FFC
Length	787.4 mm
Length	31 in
Length - Exposed Ends [x]	4 mm
Length - Exposed Ends [x]	0.157 in
Number of Conductors	5
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Length	Length	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Number of Conductors	Cable Type	Termination Style	Pitch [x]	Pitch [x]	Length [x]	Length [x]
Samtec Inc. FJ-05-D-02.00-4	50.8 mm	2 in	4 mm	0.157 in	5	FFC FPC	Backers on Both Sides Top on Both Sides	0.039 in	1 mm
Samtec Inc. FJ-05-D-03.35-4			4 mm	0.157 in	5	FFC FPC	Backers on Both Sides Top on Both Sides	0.039 in	1 mm	3.35 in	85.09 mm
Samtec Inc. FJ-05-D-04.50-4	114.3 mm	4.5 in	4 mm	0.157 in	5	FFC FPC	Backers on Both Sides Top on Both Sides	0.039 in	1 mm
Samtec Inc. FJ-05-D-03.45-4	87.63 mm	3.45 in	4 mm	0.157 in	5	FFC FPC	Backers on Both Sides Top on Both Sides	0.039 in	1 mm
Samtec Inc. FJ-05-D-25.00-4			4 mm	0.157 in	5	FFC FPC	Backers on Both Sides Top on Both Sides	0.039 in	1 mm	25 "	635 mm
Samtec Inc. FJ-05-D-05.40-4	137.16 mm	5.4 in	4 mm	0.157 in	5	FFC FPC	Backers on Both Sides Top on Both Sides	0.039 in	1 mm
Samtec Inc. FJ-05-D-31.00-4	787.4 mm	31 in	4 mm	0.157 in	5	FFC FPC	Backers on Both Sides Top on Both Sides	0.039 in	1 mm
Samtec Inc. FJ-05-D-03.25-4			4 mm	0.157 in	5	FFC FPC	Backers on Both Sides Top on Both Sides	0.039 in	1 mm	3.25 "	82.55 mm
Samtec Inc. FJ-05-D-16.00-4	406.4 mm	16 in	4 mm	0.157 in	5	FFC FPC	Backers on Both Sides Top on Both Sides	0.039 in	1 mm
Samtec Inc. FJ-05-D-07.00-4	177.8 mm	7 in	4 mm	0.157 in	5	FFC FPC	Backers on Both Sides Top on Both Sides	0.039 in	1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.74

General part information

5 Position FFC, FPC Cable 0.039" (1.00mm) 31.0" (787.4mm)

Technical documentation and resources
