220-6H-MK
ActiveAntenna Technologies Limited Company
HEAVY DUTY YAGI 220 MHZ MOUNTKIT
220-6H-MK
ActiveAntenna Technologies Limited Company
HEAVY DUTY YAGI 220 MHZ MOUNTKIT
Description
General part information
220-6H-MK

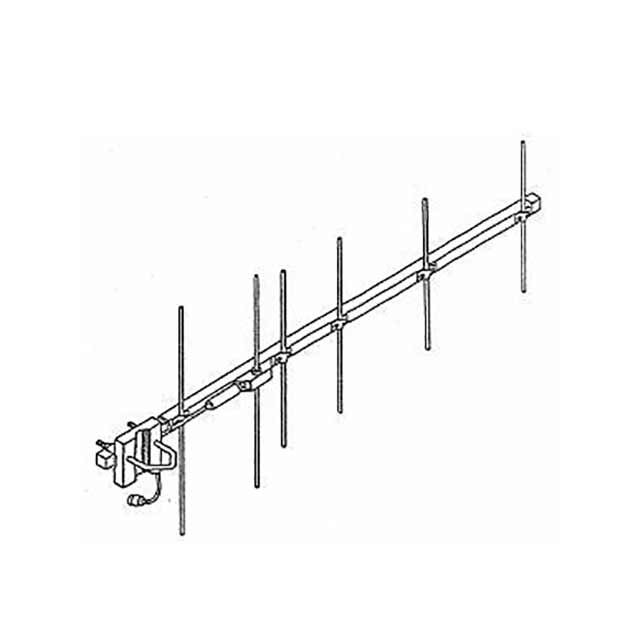

RF ANTENNA Yagi, 6-Element N Type Female
Technical Specifications
Parameters and characteristics for this part
| Specification | 220-6H-MK |
|---|---|
| Antenna Element Count | 6 elements |
| Antenna Type | Yagi |
| Features | Cable, 457mm |
| Frequency (Center/Band) | 220 MHz |
| Frequency Group | VHF |
| Frequency Group Maximum (VHF) | 300 MHz |
| Frequency Range (Max) | 225 MHz |
| Frequency Range (Min) | 215 MHz |
| Gain | 9 dBi |
| Number of Bands | 1 |
| Power - Max | 150 W |
| Termination | N Type Female |
| VSWR | 1.2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
