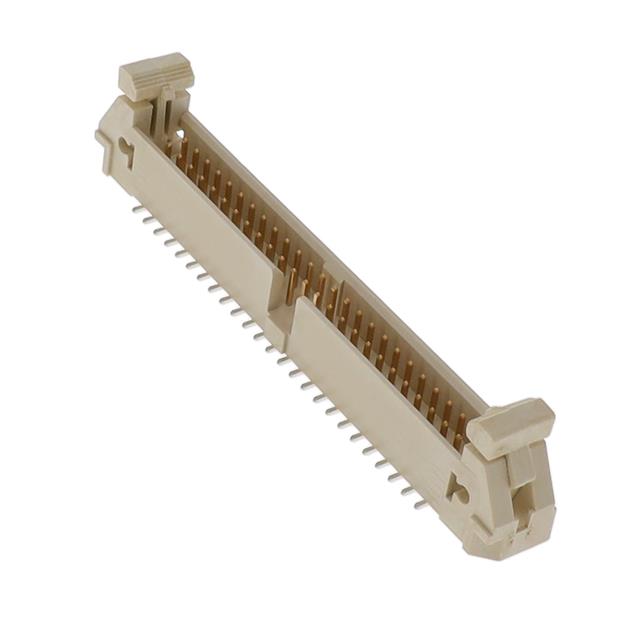

EJH-125-02-F-D-SM-LC

Active

Samtec Inc.

CONN HEADER SMD 50POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents.100" Shrouded IDC Ejector Header EJH Datasheet +1

EJH-125-02-F-D-SM-LC

Active

Samtec Inc.

CONN HEADER SMD 50POS 2.54MM

Deep-Dive with AI

Documents.100" Shrouded IDC Ejector Header EJH Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EJH-125-02-F-D-SM-LC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating	0.225 in
Contact Length - Mating	5.72 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks
Features	Board Lock, Keying Slot
Insulation Color	Natural
Insulation Height	0.5 in
Insulation Height	12.7 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

EJH-125 Series

Part	Current Rating (Amps)	Insulation Material	Style	Fastening Type	Insulation Height	Insulation Height	Contact Shape	Contact Finish - Post	Number of Rows	Contact Finish - Mating	Contact Type	Mounting Type	Number of Positions	Features	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Insulation Color	Shrouding	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Connector Type	Contact Material	Number of Positions Loaded [custom]	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. EJH-125-01-F-D-SM-K	3 A	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Latch Lock/Eject Hooks	0.5 in	12.7 mm	Square	Tin	2	Gold	Male Pin	Surface Mount	50	Keying Slot Pick and Place	Solder	-55 °C	125 °C	All	Black	Shrouded - 4 Wall	0.225 in	5.72 mm	3 µin	0.076 µm	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Phosphor Bronze
Samtec Inc. EJH-125-02-F-D-SM-LC	3 A	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Latch Lock/Eject Hooks	0.5 in	12.7 mm	Square	Tin	2	Gold	Male Pin	Surface Mount	50	Board Lock Keying Slot	Solder	-55 °C	125 °C	All	Natural	Shrouded - 4 Wall	0.225 in	5.72 mm	3 µin	0.076 µm	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Phosphor Bronze
Samtec Inc. EJH-125-01-F-D-SM-LC	3 A	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Latch Lock/Eject Hooks	0.5 in	12.7 mm	Square	Tin	2	Gold	Male Pin	Surface Mount	50	Board Lock Keying Slot	Solder	-55 °C	125 °C	All	Black	Shrouded - 4 Wall	0.225 in	5.72 mm	3 µin	0.076 µm	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Phosphor Bronze
Samtec Inc. EJH-125-01-L-D-SM	3 A	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Latch Lock/Eject Hooks	0.5 in	12.7 mm	Square	Tin	2	Gold	Male Pin	Surface Mount	50	Keying Slot	Solder	-55 °C	125 °C	All	Black	Shrouded - 4 Wall	0.225 in	5.72 mm	10 çin	0.25 çm	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Phosphor Bronze
Samtec Inc. EJH-125-01-L-D-SM-LC-P	3 A	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Latch Lock/Eject Hooks	0.5 in	12.7 mm	Square	Tin	2	Gold	Male Pin	Surface Mount	50	Board Lock Keying Slot Pick and Place	Solder	-55 °C	125 °C	All	Black	Shrouded - 4 Wall	0.225 in	5.72 mm	10 çin	0.25 çm	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Phosphor Bronze
Samtec Inc. EJH-125-01-FM-D-SM	3 A	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Latch Lock/Eject Hooks	0.5 in	12.7 mm	Square	Tin	2	Gold	Male Pin	Surface Mount	50	Keying Slot	Solder	-55 °C	125 °C	All	Black	Shrouded - 4 Wall	0.225 in	5.72 mm	3 µin	0.076 µm	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Phosphor Bronze
Samtec Inc. EJH-125-01-L-D-SM-P	3 A	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Latch Lock/Eject Hooks	0.5 in	12.7 mm	Square	Tin	2	Gold	Male Pin	Surface Mount	50	Keying Slot Pick and Place	Solder	-55 °C	125 °C	All	Black	Shrouded - 4 Wall	0.225 in	5.72 mm	10 çin	0.25 çm	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Phosphor Bronze
Samtec Inc. EJH-125-01-S-D-TH-01	3 A	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Latch Lock/Eject Hooks	0.5 in	12.7 mm	Square	Tin	2	Gold	Male Pin	Through Hole	50	Keying Slot	Solder	-55 °C	125 °C		Black	Shrouded - 4 Wall	0.225 in	5.72 mm			2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Phosphor Bronze	49	0.12 in	3.05 mm
Samtec Inc. EJH-125-01-F-D-SM-04	3 A	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Latch Lock/Eject Hooks	0.5 in	12.7 mm	Square	Tin	2	Gold	Male Pin	Surface Mount	50	Keying Slot	Solder	-55 °C	125 °C		Black	Shrouded - 4 Wall	0.225 in	5.72 mm	3 µin	0.076 µm	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Phosphor Bronze	49
Samtec Inc. EJH-125-01-FM-D-TH	3 A	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Latch Lock/Eject Hooks	0.5 in	12.7 mm	Square	Tin	2	Gold	Male Pin	Through Hole	50	Keying Slot	Solder	-55 °C	125 °C	All	Black	Shrouded - 4 Wall	0.225 in	5.72 mm	3 µin	0.076 µm	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Phosphor Bronze		0.12 in	3.05 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 17.78
		10	$ 13.68
		100	$ 10.69
		500	$ 9.11
		1000	$ 8.54

Description

General part information

EJH-125 Series

Connector Header Surface Mount 50 position 0.100" (2.54mm)

Documents

Technical documentation and resources

.100" Shrouded IDC Ejector Header

EJH Datasheet

Datasheet
