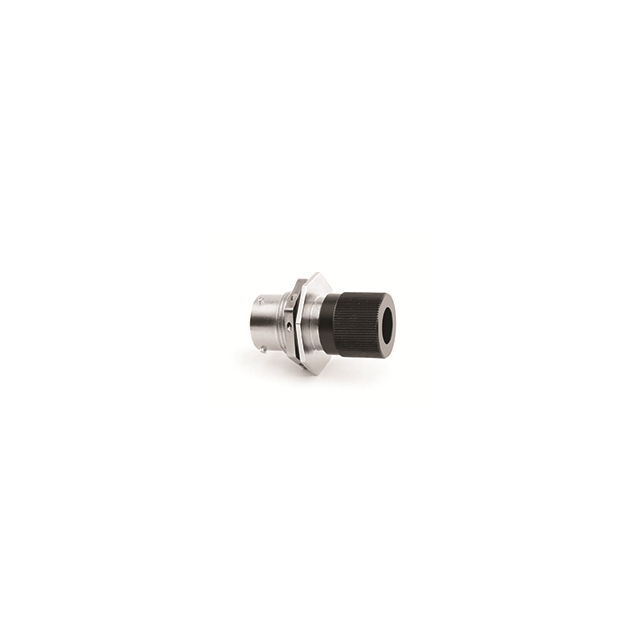

RT071619SNHEC - RT071619SNHEC

RT071619SNHEC

Active
Amphenol Sine Systems Corp

JAM NUT RECEPTACLE, FEMALE, WITH

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate RM, RSSM, RM FlyerDatasheet+1
RT071619SNHEC - RT071619SNHEC

RT071619SNHEC

Active
Amphenol Sine Systems Corp

JAM NUT RECEPTACLE, FEMALE, WITH

Deep-Dive with AI

Documentsecomate RM, RSSM, RM FlyerDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationRT071619SNHEC
Connector TypeReceptacle Housing
Contact ShapeCircular
Contact Size16
Contact TypeCrimp
Fastening TypeBayonet Lock
FeaturesBackshell
Housing ColorSilver
Includes1 O-Ring, 1 Connector, 1 Nut
Ingress ProtectionIP67 - Dust Tight, Waterproof
Insert MaterialThermoplastic
Material Flammability RatingUL94 V-0
Mounting FeatureBulkhead - Front Side Nut
NoteContacts Not Included
Number of Positions19
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
OrientationN
Shell FinishNickel
Shell MaterialZinc Alloy
Shell Size - Insert [Max]19
Shell Size - Insert [Min]16
ShieldingShielded
TypeFor Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

RT071619SNHEC

19 Position Circular Connector Receptacle Housing Panel Mount Backshell
