MWLP350-1302-II

Active

EOS Power

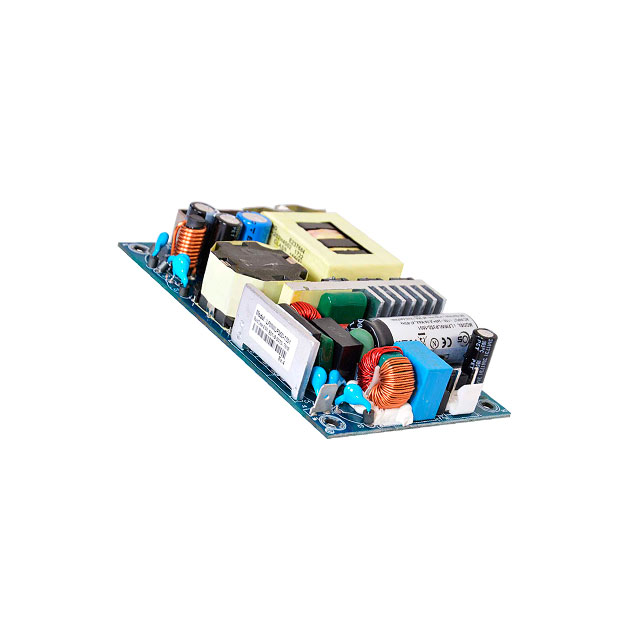

AC/DC CONVERTER 15V 180W

Deep-Dive with AI

Search across all available documentation for this part.

MWLP350-1302-II

Active

EOS Power

AC/DC CONVERTER 15V 180W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MWLP350 Series

Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC, 390VDC Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MWLP350-1302-II	MWLP350 Series

Applications	Medical	Medical
Approval Agency	cUL, CE, UL, CB, NEMKO	cUL, CE, UL, CB, NEMKO
Current - Output 1	12 A	3.45 - 15 A
Efficiency	92 %	92 - 94 %
Features	Universal Input, Adjustable Output, PFC, Standby Output	Universal Input, Adjustable Output, PFC, Standby Output
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Power (Watts)	270 W, 180 W	180 - 300 W
Power (Watts)	-	225 - 350 W
Size / Dimension [x]	5 in	5 in
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [y]	3 "	3 "
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [z]	1 "	1 "
Size / Dimension [z]	25.4 mm	25.4 mm
Type	Open Frame	Open Frame
Voltage - Input	390 VDC	390 VDC
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	15 V	12 - 48 V

MWLP350 Series

AC/DC CONVERTER 30V 200W

Part	Approval Agency	Voltage - Isolation	Number of Outputs	Current - Output 1	Mounting Type	Power (Watts)	Power (Watts)	Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Input	Efficiency	Voltage - Output 1	Applications	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Features
EOS Power LFMWLP350-1305-EX	CB, CE, cUL, NEMKO, UL	4000 V	1	6.67 A	Chassis Mount	350 W	200 W	Open Frame	90 VAC	264 VAC	390 VDC	93 %	30 V	Medical	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Adjustable Output, PFC, Standby Output, Universal Input
EOS Power LFMWLP350-1006-EX	CB, CE, cUL, NEMKO, UL	4000 V	1	3.45 A	Chassis Mount	350 W	200 W	Open Frame	90 VAC	264 VAC	390 VDC	94 %		Medical	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Adjustable Output, PFC, Standby Output, Universal Input
EOS Power LFMWLP350-1301-EX	CB, CE, cUL, NEMKO, UL	4000 V	1	15 A	Chassis Mount	225 W	180 W	Open Frame	90 VAC	264 VAC	390 VDC	92 %	12 V	Medical	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Adjustable Output, PFC, Standby Output, Universal Input
EOS Power LFMWLP350-1303	CB, CE, cUL, NEMKO, UL	4000 V	1	8.33 A	Chassis Mount	350 W	200 W	Open Frame	90 VAC	264 VAC	390 VDC	93 %	24 V	Medical	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Adjustable Output, PFC, Standby Output, Universal Input
EOS Power LFMWLP350-1002	CB, CE, cUL, NEMKO, UL	4000 V	1	12 A	Chassis Mount	325 W	180 W	Open Frame	90 VAC	264 VAC	390 VDC	92 %	15 V	Medical	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Adjustable Output, PFC, Standby Output, Universal Input
EOS Power LFMWLP350-1005	CB, CE, cUL, NEMKO, UL	4000 V	1	6.67 A	Chassis Mount	350 W	200 W	Open Frame	90 VAC	264 VAC	390 VDC	93 %	30 V	Medical	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Adjustable Output, PFC, Standby Output, Universal Input
EOS Power LFMWLP350-1305	CB, CE, cUL, NEMKO, UL	4000 V	1	6.67 A	Chassis Mount	350 W	200 W	Open Frame	90 VAC	264 VAC	390 VDC	93 %	30 V	Medical	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Adjustable Output, PFC, Standby Output, Universal Input
EOS Power LFMWLP350-1306	CB, CE, cUL, NEMKO, UL	4000 V	1	3.45 A	Chassis Mount	350 W	200 W	Open Frame	90 VAC	264 VAC	390 VDC	94 %		Medical	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Adjustable Output, PFC, Standby Output, Universal Input
EOS Power LFMWLP350-1303-EX	CB, CE, cUL, NEMKO, UL	4000 V	1	8.33 A	Chassis Mount	350 W	200 W	Open Frame	90 VAC	264 VAC	390 VDC	93 %	24 V	Medical	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Adjustable Output, PFC, Standby Output, Universal Input
EOS Power LFMWLP350-1003-EX	CB, CE, cUL, NEMKO, UL	4000 V	1	8.33 A	Chassis Mount	350 W	200 W	Open Frame	90 VAC	264 VAC	390 VDC	93 %	24 V	Medical	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Adjustable Output, PFC, Standby Output, Universal Input
