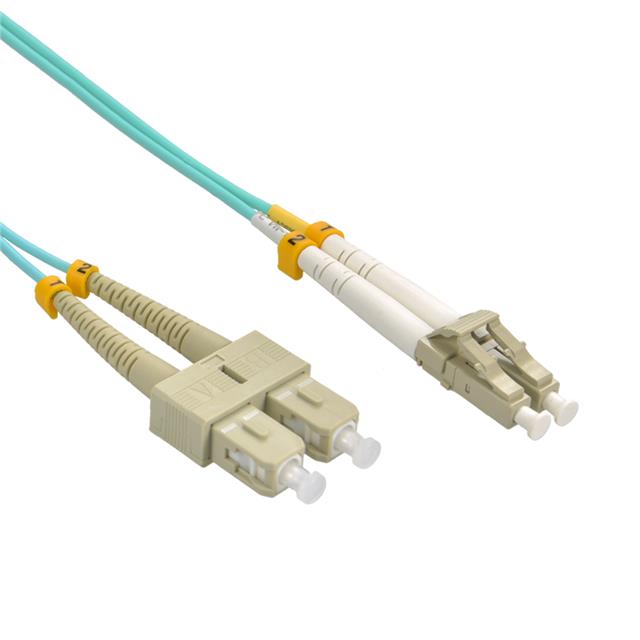

CM-102625BSTK
Cable Fiber Optic LC/UPC To SC/UPC 50/125 32.8' (10.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | CM-102625BSTK |
|---|---|
| 1st Connector | LC/UPC |
| 2nd Connector | SC/UPC |
| Cable Type | Fiber Patch |
| Color - Cable | Aqua |
| Color - Connectors | White, Beige |
| Features | Low Smoke |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 50 µm |
| Insertion Loss | 0.3 dB |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Length - Overall | 32.8 ft |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Ratings | LSZH, OFNR |
| Return Loss | 55 dB |
| Type | Multimode, Duplex, OM3 |
