PE9655
ActivePasternack

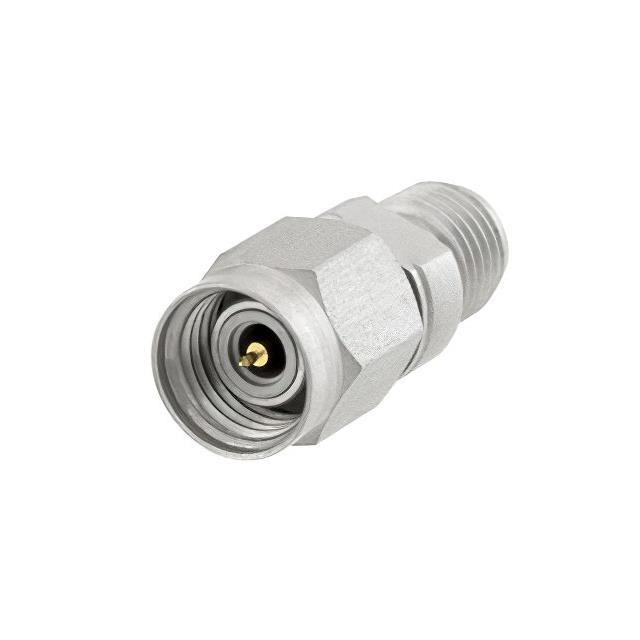

SMA FEMALE TO 2.4MM MALE ADAPTER
PE9655
ActivePasternack
SMA FEMALE TO 2.4MM MALE ADAPTER
Description
General part information
PE9655
Adapter Coaxial Connector SMA Jack, Female Socket To 2.4mm (APC-2.4, OS-50) Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE9655 |
|---|---|
| Adapter Series | SMA |
| Adapter Series Size | 2.4 mm |
| Adapter Type | Plug to Plug |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | SMA Jack, Female Socket |
| Convert To (Adapter End) | (APC-2.4, OS-50) Plug, Male Pin |
| Convert To (Adapter End) Precision | 2.4 mm |
| Dielectric Material | Polytetrafluoroethylene (PTFE), Polyphenylene Oxide (PPO) |
| Fastening Type | Threaded |
| Frequency - Max | 27 GHz |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -55 °C |
| Style | Straight |
