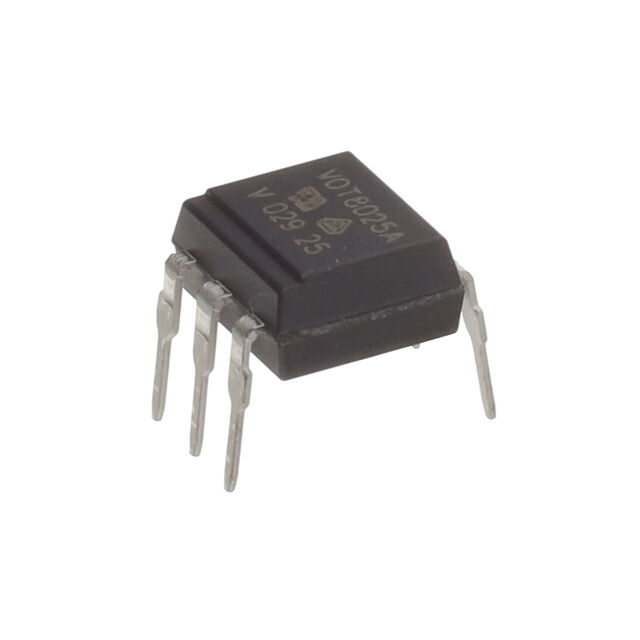

VOT8025AD-V
ActiveVishay General Semiconductor - Diodes Division
OPTOCOUPLER PHOTOTRIAC 800V DIP5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VOT8025AD-V |
|---|---|
| Approval Agency | VDE, CQC, cUL, UL |
| Current - DC Forward (If) (Max) | 50 mA |
| Current - Hold (Ih) | 400 µA |
| Current - LED Trigger (Ift) (Max) [Max] | 5 mA |
| Current - On State (It (RMS)) (Max) | 100 mA |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Triac |
| Package / Case | 7.62 mm |
| Package / Case | 6-DIP |
| Package / Case | 0.3 in, 5 Leads |
| Static dV/dt (Min) [Min] | 1 kV/µs |
| Supplier Device Package | 6-DIP |
| Voltage - Isolation | 5300 Vrms |
| Voltage - Off State | 800 V |
| Zero Crossing Circuit | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.27 | |
| 50 | $ 0.81 | |||
| 100 | $ 0.60 | |||
| 500 | $ 0.55 | |||
| 1000 | $ 0.45 | |||
| 2000 | $ 0.43 | |||
| 5000 | $ 0.42 | |||
| 10000 | $ 0.41 | |||
Description
General part information
VOT8025 Series
Optoisolator Triac Output 5300Vrms 1 Channel 6-DIP
