SSL-LX5099IGW
ActiveLumex Opto/Components Inc.

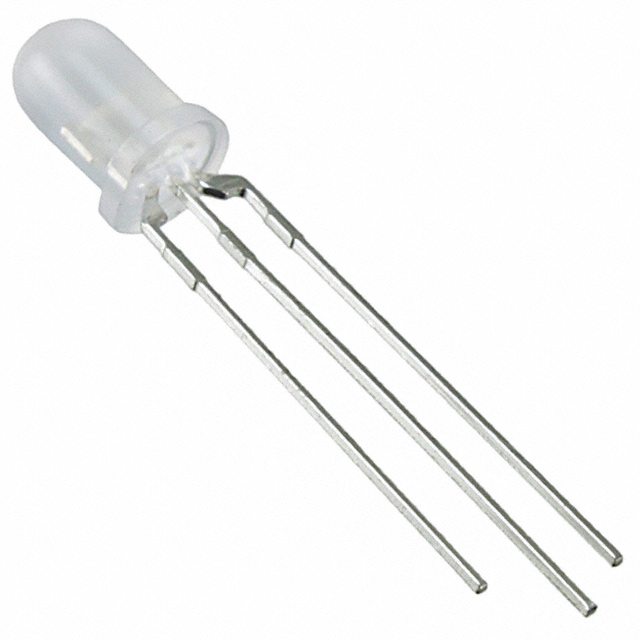

LED GRN/RED DIFFUSED T-1 3/4 T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SSL-LX5099IGW
ActiveLumex Opto/Components Inc.
LED GRN/RED DIFFUSED T-1 3/4 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SSL-LX5099IGW | SSL-LX5099 Series |
|---|---|---|
| Color | Red, Green | Blue, Red, Orange, Green, Yellow |
| Configuration | Common Cathode | Independent, Standard, Common Anode, Common Cathode |
| Current - Test | 20 mA, 20 mA | 10.5 - 20 mA |
| Current - Test | - | 20 mA |
| Current - Test | - | 20 mA |
| Current - Test | - | 20mA Red, 20mA Yellow |
| Height (Max) [Max] [z] | 11 mm | 8.6 - 11 mm |
| Lens Color | White | White, Red, Colorless |
| Lens Size | T-1 3/4 | T-1 3/4 |
| Lens Size | 5 mm | 5 mm |
| Lens Size | - | 5 mm Dia |
| Lens Style | Round with Domed Top | Round with Domed Top |
| Lens Transparency | Diffused | Diffused, Clear |
| Millicandela Rating | - | 80 mcd |
| Millicandela Rating | - | 0.01 mcd |
| Millicandela Rating | - | 900 mcd |
| Millicandela Rating | - | 400 - 500 mcd |
| Millicandela Rating | - | 6mcd Red, 6mcd Green, 20mcd Yellow, 20mcd Green |
| Millicandela Rating [custom] | 45 mcd | 20 - 200 mcd |
| Millicandela Rating [custom] | 55 mcd | 55 - 800 mcd |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial - 3 Leads | Radial, Radial - 3 Leads |
| Size / Dimension | - | 5 mm |
| Supplier Device Package | T-1 3/4 | T-1 3/4 |
| Viewing Angle | 60 ° | 30 - 60 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V, 2 V | 1.7 - 3.5 V |
| Wavelength - Peak | 565 nm, 635 nm | 470 - 660 nm |
| Wavelength - Peak | - | 636 nm |
| Wavelength - Peak | - | 574 nm |
SSL-LX5099 Series
LED BLUE/RED DIFF T-1 3/4 T/H
| Part | Lens Size | Lens Size | Lens Transparency | Height (Max) [Max] [z] | Lens Color | Voltage - Forward (Vf) (Typ) | Viewing Angle | Mounting Type | Lens Style | Supplier Device Package | Wavelength - Peak | Package / Case | Color | Configuration | Current - Test [custom] | Current - Test [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Size / Dimension [diameter] | Millicandela Rating | Current - Test | Millicandela Rating [custom] | Millicandela Rating [custom] | Current - Test | Millicandela Rating [custom] | Millicandela Rating | Lens Size [diameter] | Wavelength - Peak [custom] | Wavelength - Peak [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. SSL-LX5099USBSIW | T-1 3/4 | 5 mm | Diffused | 8.6 mm | White | 2 V, 3.5 V | 60 ° | Through Hole | Round with Domed Top | T-1 3/4 | 470 nm, 636 nm | Radial | Blue, Red | Independent | 20 mA | 20 mA | 80 mcd | 100 mcd | 5 mm | ||||||||||
Lumex Opto/Components Inc. SSL-LX5099LBI-SRD | T-1 3/4 | 5 mm | Diffused | 11 mm | Red | 60 ° | Through Hole | Round with Domed Top | T-1 3/4 | 660 nm | Radial - 3 Leads | Red | Standard | 0.01 mcd | 10.5 mA | ||||||||||||||
Lumex Opto/Components Inc. SSL-LX5099SOPGW | T-1 3/4 | 5 mm | Diffused | 8.6 mm | White | 2 V, 2.2 V | 60 ° | Through Hole | Round with Domed Top | T-1 3/4 | 555 nm, 610 nm | Radial | Green, Orange | Independent | 5 mm | 20 mA, 20 mA | 900 mcd | 20 mcd | |||||||||||
Lumex Opto/Components Inc. SSL-LX5099IGW-02 | T-1 3/4 | 5 mm | Diffused | 8.6 mm | White | 2 V, 2.2 V | 60 ° | Through Hole | Round with Domed Top | T-1 3/4 | 565 nm, 635 nm | Radial | Green, Red | Independent | 55 mcd | 5 mm | 20 mA, 20 mA | 45 mcd | |||||||||||
Lumex Opto/Components Inc. SSL-LX5099SISYW | T-1 3/4 | 5 mm | Diffused | 8.6 mm | White | 2 V, 2 V | 60 ° | Through Hole | Round with Domed Top | T-1 3/4 | Radial | Red, Yellow | Independent | 800 mcd | 5 mm | 20mA Red, 20mA Yellow | 500 mcd | ||||||||||||
Lumex Opto/Components Inc. SSL-LX5099IGW-CA | T-1 3/4 | 5 mm | Diffused | 11 mm | White | 2 V, 2.2 V | 60 ° | Through Hole | Round with Domed Top | T-1 3/4 | 565 nm, 635 nm | Radial - 3 Leads | Green, Red | Common Anode | 20 mA, 20 mA | 6mcd Green, 6mcd Red | |||||||||||||
Lumex Opto/Components Inc. SSL-LX5099IGW | T-1 3/4 | 5 mm | Diffused | 11 mm | White | 2 V, 2.2 V | 60 ° | Through Hole | Round with Domed Top | T-1 3/4 | 565 nm, 635 nm | Radial - 3 Leads | Green, Red | Common Cathode | 55 mcd | 20 mA, 20 mA | 45 mcd | ||||||||||||
Lumex Opto/Components Inc. SSL-LX5099GIW | T-1 3/4 | 5 mm | Diffused | 11 mm | White | 2 V, 2.2 V | 60 ° | Through Hole | Round with Domed Top | T-1 3/4 | 565 nm, 635 nm | Radial - 3 Leads | Green, Red | Common Cathode | 55 mcd | 20 mA, 20 mA | 45 mcd | ||||||||||||
Lumex Opto/Components Inc. SSL-LX5099YGW-CA | T-1 3/4 | 5 mm | Diffused | 11 mm | White | 2.1 V, 2.2 V | 60 ° | Through Hole | Round with Domed Top | T-1 3/4 | 565 nm, 585 nm | Radial - 3 Leads | Green, Yellow | Common Anode | 20 mA, 20 mA | 20mcd Green, 20mcd Yellow | |||||||||||||
Lumex Opto/Components Inc. SSL-LX5099SRSGC/R | T-1 3/4 | 5 mm | Clear | 11 mm | Colorless | 1.7 V, 2.2 V | 30 ° | Through Hole | Round with Domed Top | T-1 3/4 | 565 nm, 660 nm | Radial - 3 Leads | Green, Red | Common Cathode | 500 mcd | 20 mA, 20 mA | 140 mcd |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.52 | |
| 10 | $ 0.34 | |||
| 500 | $ 0.23 | |||
| 1000 | $ 0.17 | |||
| 5000 | $ 0.15 | |||
| 10000 | $ 0.14 | |||
Description
General part information
SSL-LX5099 Series
Green, Red LED Indication - Discrete 2.2V Green, 2V Red Radial - 3 Leads
Documents
Technical documentation and resources
