Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2291286 | DFLK-D50 Series |
|---|---|---|
| Convert From (Adapter End) | Terminal Blocks, Screw Connection, 50 Pos, 2 Rows | Terminal Blocks, Screwless Connection, 50 Pos, 2 Rows, Terminal Blocks, Screw Connection, 50 Pos, 2 Rows |
| Convert To (Adapter End) | 2 Rows, 50 Pos | 2 - 50 Rows |
| Convert To (Adapter End) | Male Pins, D-Sub | D-Sub, Female Sockets, Male Pins |
| Mounting Type | Feed Through, Panel Mount | Feed Through, Panel Mount |
| Wire Gauge [Max] | 30 AWG | 24 - 30 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
DFLK-D50 Series
CONN MODULE DB50 FEEDTHROUGH
| Part | Convert To (Adapter End) | Convert To (Adapter End) | Convert From (Adapter End) | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|
Phoenix Contact 2903070 | 2 Rows, 50 Pos | D-Sub, Female Sockets | Terminal Blocks, Screwless Connection, 50 Pos, 2 Rows | Feed Through, Panel Mount | 12 AWG | 24 AWG |
Phoenix Contact 2291286 | 2 Rows, 50 Pos | D-Sub, Male Pins | Terminal Blocks, Screw Connection, 50 Pos, 2 Rows | Feed Through, Panel Mount | 12 AWG | 30 AWG |
Phoenix Contact 2287669 | 2 Rows, 50 Pos | D-Sub, Female Sockets | Terminal Blocks, Screw Connection, 50 Pos, 2 Rows | Feed Through, Panel Mount | 12 AWG | 30 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DFLK-D50 Series

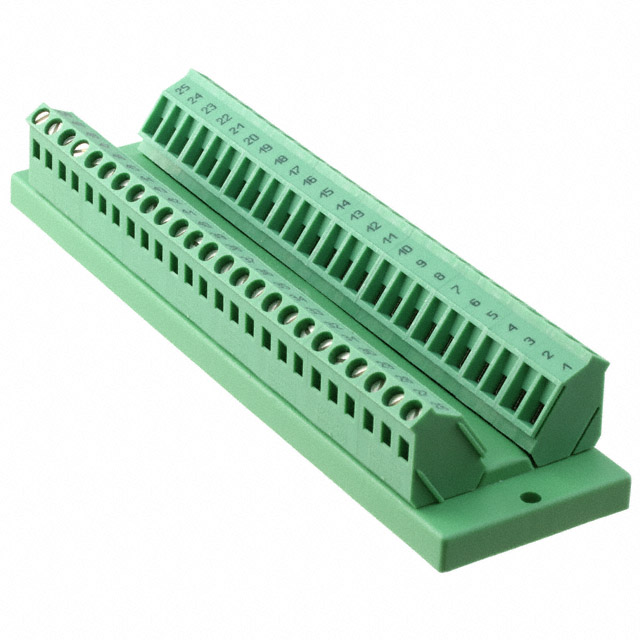

Adapter Terminal Blocks, Screw Connection, 50 Pos, 2 Rows To D-Sub, Male Pins, 50 Pos, 2 Rows
