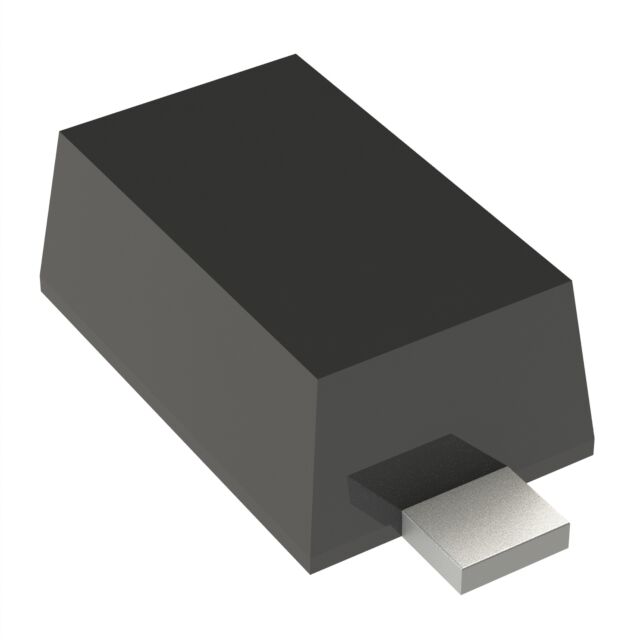

MMSZ5257B RHG
ActiveTaiwan Semiconductor Corporation
DIODE ZENER 33V 500MW SOD123F
Deep-Dive with AI
Search across all available documentation for this part.
MMSZ5257B RHG
ActiveTaiwan Semiconductor Corporation
DIODE ZENER 33V 500MW SOD123F
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MMSZ5257B RHG |
|---|---|
| Current - Reverse Leakage @ Vr | 100 nA |
| Impedance (Max) (Zzt) [Max] | 58 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 °C |
| Package / Case | SOD-123F |
| Power - Max [Max] | 500 mW |
| Supplier Device Package | SOD-123F |
| Tolerance | 5 % |
| Voltage - Zener (Nom) (Vz) | 33 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.21 | |
| 10 | $ 0.13 | |||
| 100 | $ 0.08 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.05 | |||
| Digi-Reel® | 1 | $ 0.21 | ||
| 10 | $ 0.13 | |||
| 100 | $ 0.08 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.05 | |||
| Tape & Reel (TR) | 3000 | $ 0.04 | ||
| 6000 | $ 0.04 | |||
| 9000 | $ 0.04 | |||
| 15000 | $ 0.03 | |||
| 21000 | $ 0.03 | |||
| 30000 | $ 0.03 | |||
| 75000 | $ 0.03 | |||
| 150000 | $ 0.02 | |||
| 300000 | $ 0.02 | |||
Description
General part information
MMSZ5257 Series
Zener Diode 33 V 500 mW ±5% Surface Mount SOD-123F
