12051809

Active

Bopla Enclosures

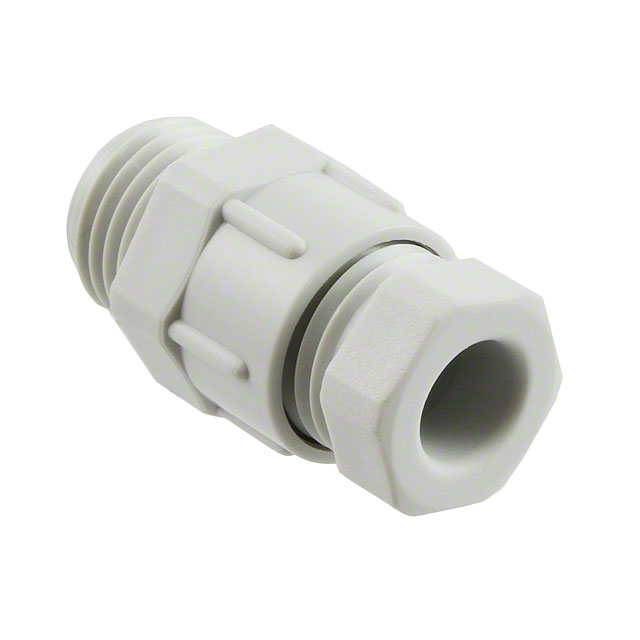

CABLE GLAND 4-6MM PG7 POLYAMIDE

Search across all available documentation for this part.

Active

Bopla Enclosures

CABLE GLAND 4-6MM PG7 POLYAMIDE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	12051809	12051 Series

Color	Gray	Gray
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-30 ░C	-30 - -20 ░C
Outside Cable Diameter (Max) [Max] [diameter]	0.236 in	0.236 - 0.315 in
Outside Cable Diameter (Max) [Max] [diameter]	6 mm	6 - 8 mm
Outside Cable Diameter (Min)	-	6 mm
Outside Cable Diameter (Min)	-	0.236 in
Outside Cable Diameter (Min) [Min]	0.157 in	0.157 in
Outside Cable Diameter (Min) [Min]	4 mm	4 mm
Thread Length	8 mm	8 mm
Thread Length	0.315 in	0.315 in
Thread Size	PG7	PG7, PG9
Type	Cable Gland	Cable Gland

CABLE GLAND 4-6MM PG7 POLYAMIDE

Part	Color	Type	Ingress Protection	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Operating Temperature [Max]	Operating Temperature [Min]	Material	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
Bopla Enclosures 12051809	Gray	Cable Gland	IP65 - Dust Tight, Water Resistant	0.157 in	4 mm	0.236 in	6 mm	8 mm	0.315 in	100 °C	-30 ░C	Polyamide (PA), Nylon	PG7
Bopla Enclosures 12051909	Gray	Cable Gland	IP65 - Dust Tight, Water Resistant			0.315 in	8 mm	8 mm	0.315 in	100 °C	-20 C	Polyamide (PA), Nylon	PG9	6 mm	0.236 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon PG7 Gray
