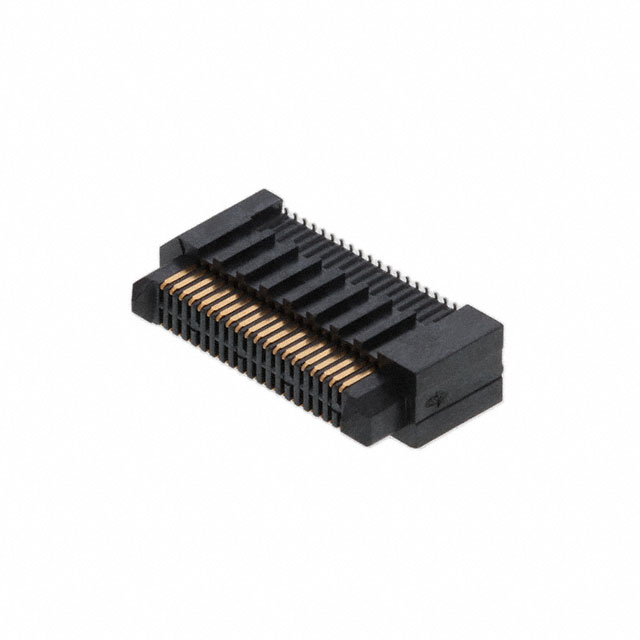

ERM8-020-08.0-S-DV-K-TR

Active

Samtec Inc.

CONN HDR 40POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsERF8 Series Other Related Documents 03 ERM8 Datasheet +1

ERM8-020-08.0-S-DV-K-TR

Active

Samtec Inc.

CONN HDR 40POS SMD GOLD

Deep-Dive with AI

DocumentsERF8 Series Other Related Documents 03 ERM8 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERM8-020-08.0-S-DV-K-TR

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Pick and Place, Board Guide
Height Above Board	8.91 mm
Height Above Board	0.351 in
Mated Stacking Heights	12 mm, 15 mm, 10 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERM8-020 Series

Part	Height Above Board	Height Above Board	Number of Rows	Connector Type	Number of Positions	Contact Finish	Pitch [x]	Pitch [x]	Mounting Type	Features	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights
Samtec Inc. ERM8-020-03-S-D-RA-TR	6.25 mm	0.246 in	2	Header Center Strip Contacts	40	Gold	0.8 mm	0.031 in	Surface Mount Right Angle	Board Guide Mounting Flange	0.76 Ám	30 Áin
Samtec Inc. ERM8-020-01-L-D-EM2-TR			2	Header Center Strip Contacts	40	Gold	0.8 mm	0.031 in	Board Edge Straddle Mount		0.25 Ám	10 Áin
Samtec Inc. ERM8-020-08.0-S-DV-K-TR	8.91 mm	0.351 in	2	Header Center Strip Contacts	40	Gold	0.8 mm	0.031 in	Surface Mount	Board Guide Pick and Place	0.76 Ám	30 Áin	10 mm 12 mm 15 mm
Samtec Inc. ERM8-020-01-L-D-RA-L-TR	6.25 mm	0.246 in	2	Header Center Strip Contacts	40	Gold	0.8 mm	0.031 in	Surface Mount Right Angle	Board Guide Latches Mounting Flange	0.25 Ám	10 Áin
Samtec Inc. ERM8-020-02.0-L-DV-P-TR	5.97 mm	0.235 in	2	Header Center Strip Contacts	40	Gold	0.8 mm	0.031 in	Surface Mount	Board Guide Pick and Place	0.25 Ám	10 Áin	7 mm 9 mm 12 mm
Samtec Inc. ERM8-020-02.0-L-DV-K-TR	5.97 mm	0.235 in	2	Header Center Strip Contacts	40	Gold	0.8 mm	0.031 in	Surface Mount	Board Guide Pick and Place	0.25 Ám	10 Áin	7 mm 9 mm 12 mm
Samtec Inc. ERM8-020-05.0-L-DV-EGP-TR	8.91 mm	0.351 in	2	Header Center Strip Contacts	40	Gold	0.8 mm	0.031 in	Surface Mount	Board Guide Mating Guide	0.25 Ám	10 Áin	10 mm 12 mm 15 mm
Samtec Inc. ERM8-020-01-L-D-EM2-DSS-EGPS-TR			2	Differential Pair Array Male	40	Gold	0.8 mm	0.031 in	Board Edge Straddle Mount	Mating Guide	0.25 Ám	10 Áin
Samtec Inc. ERM8-020-05.0-S-DV-L-TR	8.91 mm	0.351 in	2	Header Center Strip Contacts	40	Gold	0.8 mm	0.031 in	Surface Mount	Board Guide Latches	0.76 Ám	30 Áin	10 mm 12 mm 15 mm
Samtec Inc. ERM8-020-01-S-D-RA-K-TR	6.25 mm	0.246 in	2	Header Center Strip Contacts	40	Gold	0.8 mm	0.031 in	Surface Mount Right Angle	Board Guide Mounting Flange Pick and Place	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.83
		25	$ 5.15
		50	$ 4.78
		100	$ 4.61
	Digi-Reel®	1	$ 9.11
		10	$ 8.20
		25	$ 7.72
		50	$ 7.52
		100	$ 7.32
	Tape & Reel (TR)	200	$ 4.61
		600	$ 4.03
		1000	$ 3.98

Description

General part information

ERM8-020 Series

40 Position Connector Header, Center Strip Contacts Surface Mount Gold

Documents

Technical documentation and resources

ERF8 Series Other Related Documents 03

ERM8 Datasheet

Datasheet
