IMP001-US-B

Electric Imp Inc.

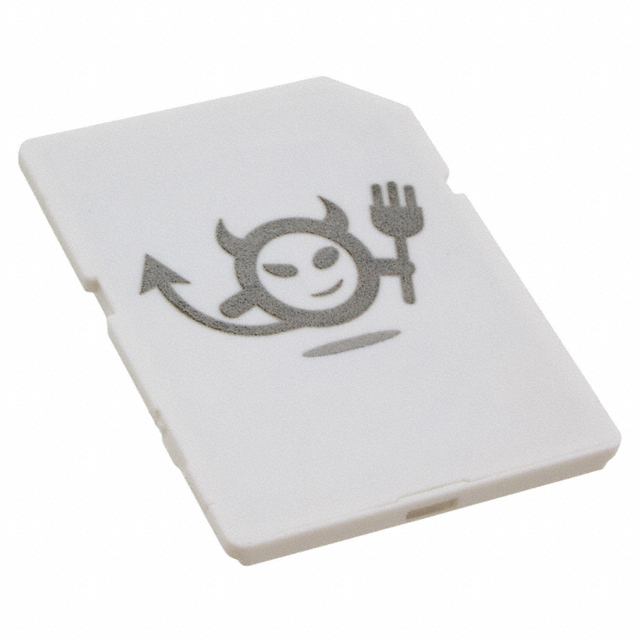

IMP 802.11B/G/N NODE CARD

Search across all available documentation for this part.

Electric Imp Inc.

IMP 802.11B/G/N NODE CARD

Technical Specifications

Parameters and characteristics for this part

IMP 802.11B/G/N NODE CARD

Part	Power - Output	Frequency	Data Rate (Max)	Modulation or Protocol	Function	Sensitivity	Applications	Interface	Features	Voltage - Supply [Max]	Voltage - Supply [Min]
Electric Imp Inc. IMP001-US-B	16.75 dBm	2.4 GHz	1 Mbps	802.11 b/g/n	Transceiver, WLAN	-97 dBm	Wireless LAN	I2C, SPI, UART	LED Indicator	3.6 V	1.8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Transceiver, WLAN 2.4GHz 802.11 b/g/n I2C, SPI, UART 1Mbps
