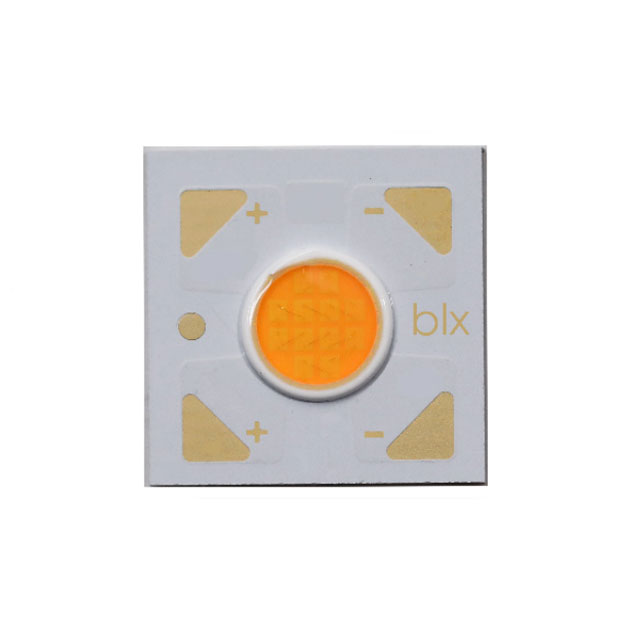

BXRH-65S0601-A-74
ActiveBRIDGELUX
LED COB V4HD THRIVE WHT SQ 6500K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BXRH-65S0601-A-74
ActiveBRIDGELUX
LED COB V4HD THRIVE WHT SQ 6500K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BXRH-65S0601-A-74 | BXRH-65 Series |
|---|---|---|
| CCT (K) | 6500 K | 6500 K |
| Color | Cool, White | Cool, White |
| Configuration | Square | Square |
| CRI (Color Rendering Index) | 98 | 98 |
| Current - Max [Max] | 240 mA | 240 - 960 mA |
| Current - Test | 175 mA | 175 - 350 mA |
| Height [z] | 1.63 mm | 1.63 mm |
| Lens Type | Flat | Flat |
| Light Emitting Surface (LES) [diameter] | 4.5 mm | 4.5 - 6.6 mm |
| Lumens/Watt @ Current - Test | 107 lm/W | 107 - 111 lm/W |
| Luminous Flux @ Current/Temperature | 682 lm | 682 - 1414 lm |
| Size / Dimension [x] | 12.5 mm | 12.5 mm |
| Size / Dimension [y] | 12.5 mm | 12.5 mm |
| Type | Chip On Board (COB) | Chip On Board (COB) |
| Viewing Angle | 120 ° | 120 ° |
| Voltage - Forward (Vf) (Typ) | 36.4 V | 18.2 - 36.4 V |
BXRH-65 Series
LED COB V6HD THRIVE WHT SQ 6500K
| Part | Lumens/Watt @ Current - Test | Type | CRI (Color Rendering Index) | Viewing Angle | Lens Type | Current - Test | Height [z] | CCT (K) | Configuration | Luminous Flux @ Current/Temperature | Light Emitting Surface (LES) [diameter] | Color | Current - Max [Max] | Voltage - Forward (Vf) (Typ) | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BRIDGELUX BXRH-65S1001-B-74 | 111 lm/W | Chip On Board (COB) | 98 | 120 ° | Flat | 350 mA | 1.63 mm | 6500 K | Square | 1414 lm | 6.6 mm | Cool, White | 480 mA | 36.4 V | ||
BRIDGELUX BXRH-65S1001-G-73 | 111 lm/W | Chip On Board (COB) | 98 | 120 ° | Flat | 1.63 mm | 6500 K | Square | 1414 lm | 6.6 mm | Cool, White | 960 mA | 18.2 V | |||
BRIDGELUX BXRH-65S1001-G-74 | 111 lm/W | Chip On Board (COB) | 98 | 120 ° | Flat | 1.63 mm | 6500 K | Square | 1414 lm | 6.6 mm | Cool, White | 960 mA | 18.2 V | |||
BRIDGELUX BXRH-65S0601-A-74 | 107 lm/W | Chip On Board (COB) | 98 | 120 ° | Flat | 175 mA | 1.63 mm | 6500 K | Square | 682 lm | 4.5 mm | Cool, White | 240 mA | 36.4 V | 12.5 mm | 12.5 mm |
BRIDGELUX BXRH-65S1001-B-73 | 111 lm/W | Chip On Board (COB) | 98 | 120 ° | Flat | 350 mA | 1.63 mm | 6500 K | Square | 1414 lm | 6.6 mm | Cool, White | 480 mA | 36.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.96 | |
Description
General part information
BXRH-65 Series
LED Lighting COBs Engines Modules Chip On Board (COB) V4 HD Thrive™ Array White, Cool Square
