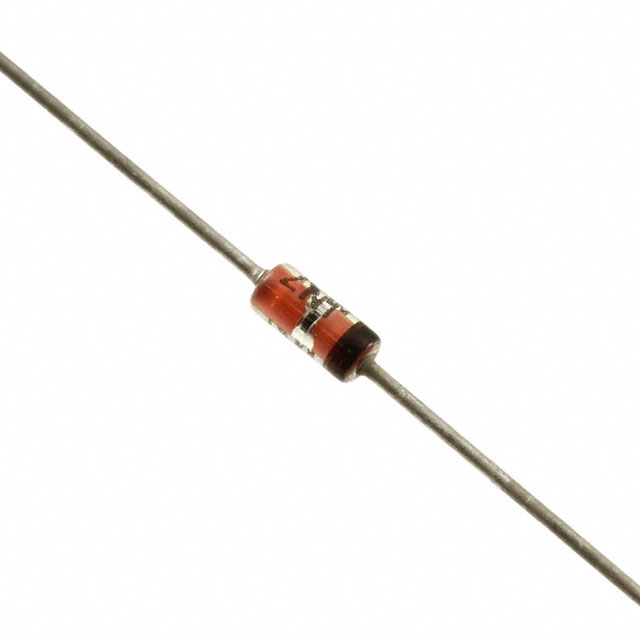

JANTX1N3154-1
ActiveZENER DIODE SINGLE 2-PIN 8.4V, 5%, 15OHM, 500MW DO-35 BAG
Deep-Dive with AI
Search across all available documentation for this part.
JANTX1N3154-1
ActiveZENER DIODE SINGLE 2-PIN 8.4V, 5%, 15OHM, 500MW DO-35 BAG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | JANTX1N3154-1 | JANTX1N3154-1-Zener-Diode Series |
|---|---|---|
| - | - | |
| Current - Reverse Leakage @ Vr | 10 µA | 10 µA |
| Grade | Military | Military |
| Impedance (Max) (Zzt) [Max] | 15 Ohms | 15 Ohms |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 347 °F | 347 °F |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Package / Case | Axial, DO-35, DO-204AH | Axial, DO-35, DO-204AH |
| Power - Max [Max] | 500 mW | 500 mW |
| Qualification | MIL-PRF-19500/158 | MIL-PRF-19500/158 |
| Supplier Device Package | DO-204AH (DO-35) | DO-204AH (DO-35) |
| Tolerance | 5 % | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V | 1.5 V |
| Voltage - Zener (Nom) (Vz) | 8.8 V | 8.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Microchip Direct | N/A | 1 | $ 247.78 | |
JANTX1N3154-1-Zener-Diode Series
Zener Diode Single 2-Pin 8.4V, 5%, 15Ohm, 500mW DO-35 Bag
| Part | Qualification | Power - Max [Max] | Supplier Device Package | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Zener (Nom) (Vz) | Current - Reverse Leakage @ Vr | Tolerance | Mounting Type | Grade | Voltage - Forward (Vf) (Max) @ If | Impedance (Max) (Zzt) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology JANTX1N3154-1 | MIL-PRF-19500/158 | 500 mW | DO-204AH (DO-35) | Axial, DO-204AH, DO-35 | -65 ░C | 347 °F | 8.8 V | 10 µA | 5 % | Through Hole | Military | 1.5 V | 15 Ohms |
Microchip Technology JANTX1N3154-1 |
Description
General part information
JANTX1N3154-1-Zener-Diode Series
The popular 1N3154 thru 1N3157A series of Zero-TC Reference Diodes provides a selection of 8.4 V nominal voltages and temperature coefficients to as low as 0.001 %/o C for minimal voltage change with temperature when operated at 10.0 mA. These glass axial-leaded DO-7 reference diodes are also available in JAN, JANTX, and JANTXV military qualifications. As a further option for commercial product, they are available as RoHS Compliant with an e3 suffix added to the part number. Microchip also offers numerous other Zener Reference Diode products for a variety of other voltages from 6.2 V to 200 V.
Documents
Technical documentation and resources
