ATEPR-10-RY-Z
ActiveMenics
COMPLETE UNIT RED/YL FLSH 2STACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ATEPR-10-RY-Z
ActiveMenics
COMPLETE UNIT RED/YL FLSH 2STACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ATEPR-10-RY-Z |
|---|---|
| Features | Pushbutton Control, Adjustable Volume |
| Function - Audible | Continuous |
| Function - Lighting | Steady, Flashing |
| Light Color | Red, Yellow |
| Number of Stacks | 2 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -15 °C |
| Termination Style | Cable with Connector |
| Type | Complete Unit |
| Voltage - Supply | 110 VAC/DC |
ATEPR-10 Series
| Part | Voltage - Supply | Number of Stacks | Operating Temperature [Min] | Operating Temperature [Max] | Function - Lighting | Features | Termination Style | Type | Function - Audible | Light Color |
|---|---|---|---|---|---|---|---|---|---|---|
Menics | 110 VAC/DC | 2 | -15 °C | 40 °C | Flashing Steady | Adjustable Volume Pushbutton Control | Cable with Connector | Complete Unit | Continuous | Red Yellow |
Menics | 110 VAC/DC | 1 | -15 °C | 40 °C | Flashing | Adjustable Volume Pushbutton Control | Cable with Connector | Complete Unit | Continuous | Red |
Menics | 110 VAC/DC | 2 | -15 °C | 40 °C | Flashing Steady | Pushbutton Control | Cable with Connector | Complete Unit | Continuous | Green Red |
Menics | 110 VAC/DC | 4 | -15 °C | 40 °C | Flashing Steady | Pushbutton Control | Cable with Connector | Complete Unit | Continuous | Blue Green Red Yellow |
Menics | 110 VAC/DC | 5 | -15 °C | 40 °C | Flashing Steady | Pushbutton Control | Cable with Connector | Complete Unit | Blue Clear Green Red Yellow | |
Menics | 110 VAC/DC | 4 | -15 °C | 40 °C | Flashing Steady | Pushbutton Control | Cable with Connector | Complete Unit | Blue Green Red Yellow | |
Menics | 110 VAC/DC | 1 | -15 °C | 40 °C | Steady | Pushbutton Control | Cable with Connector | Complete Unit | Green | |
Menics | 110 VAC/DC | 1 | -15 °C | 40 °C | Flashing | Pushbutton Control | Cable with Connector | Complete Unit | Continuous | Red |
Menics | 110 VAC/DC | 2 | -15 °C | 40 °C | Flashing Steady | Pushbutton Control | Cable with Connector | Complete Unit | Green Red | |
Menics | 110 VAC/DC | 2 | -15 °C | 40 °C | Flashing Steady | Pushbutton Control | Cable with Connector | Complete Unit | Continuous | Red Yellow |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 238.00 | |
Description
General part information
ATEPR-10 Series

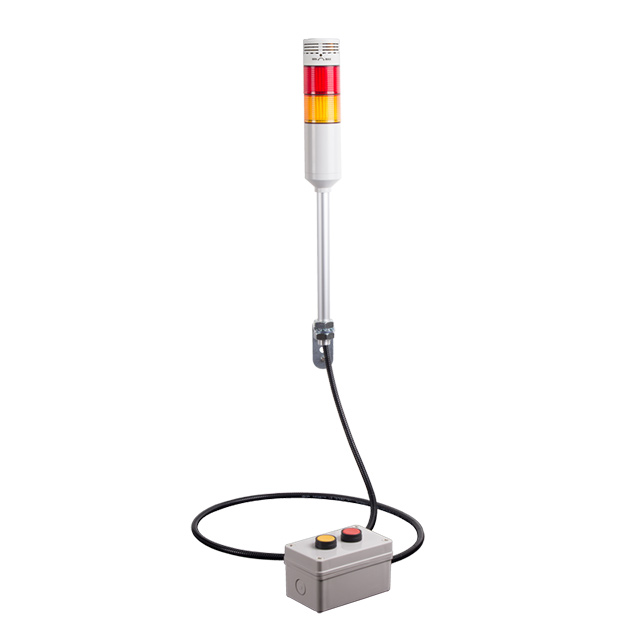

Stack Light Complete Unit Red, Yellow LED Adjustable Volume, Pushbutton Control Cable with Connector
