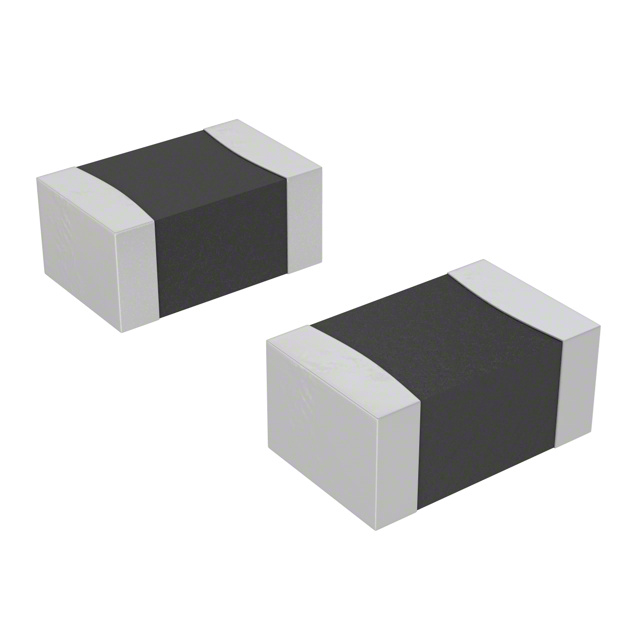

FCP0805H221G
UnknownCornell Dubilier Knowles
CAP FILM 220PF 2% 50VDC 0805
FCP0805H221G
UnknownCornell Dubilier Knowles
CAP FILM 220PF 2% 50VDC 0805
Description
General part information
FCP0805H221G
220 pF Film Capacitor 50V Polyphenylene Sulfide (PPS) 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | FCP0805H221G |
|---|---|
| Applications | Switching, High Frequency |
| Capacitance | 220 pF |
| Dielectric Material | Polyphenylene Sulfide (PPS) |
| Height - Seated (Max) | 0.043 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
| Termination | Solder Pads |
| Tolerance | 2 % |
| Voltage Rating - DC | 50 V |
