1132087
ActiveSICK, Inc.
MINIATURE PHOTOELECTRIC SENSORS,
1132087
ActiveSICK, Inc.
MINIATURE PHOTOELECTRIC SENSORS,
Description
General part information
1132087

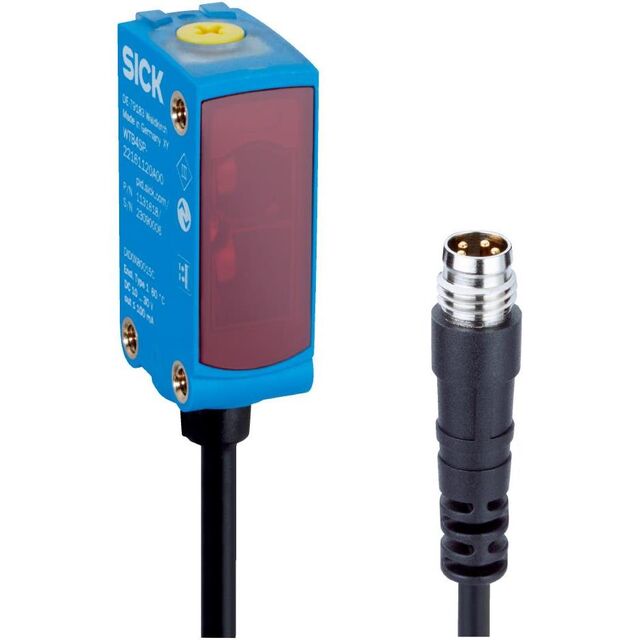

Proximity Optical Sensor 0.157" ~ 5.118" (4mm ~ 130mm) Push-Pull, NPN/PNP - Dark-ON/Light-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | 1132087 |
|---|---|
| Adjustment Type | Fixed |
| Cable Length | 4.488 in |
| Connection Method | M8, Cable with Connector |
| Ingress Protection | IP67, IP66 |
| Light Source | Red |
| Light Source Wavelength (Red) | 635 nm |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | PNP - Dark-ON, Push-Pull, Light-ON, NPN |
| Response Time | 500 µs |
| Sensing Distance Maximum | 5.118 " |
| Sensing Distance Minimum | 0.157 " |
| Sensing Method | Proximity |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
