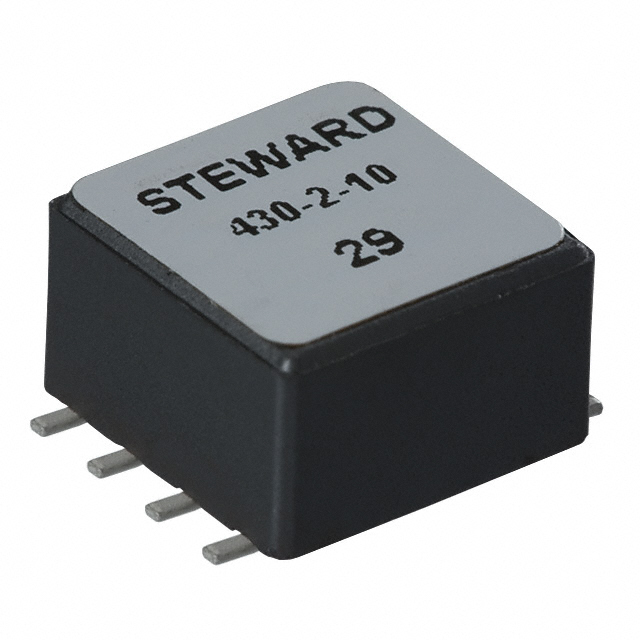

29F0430-2SR
ObsoleteLaird Technologies EMI
FERRITE BEAD 200 OHM 8SMD 1LN
29F0430-2SR
ObsoleteLaird Technologies EMI
FERRITE BEAD 200 OHM 8SMD 1LN
Description
General part information
29F0430-2SR
200 Ohms @ 100 MHz 4 Power Line Ferrite Bead 8-SMD, Flat Lead 8A 10mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | 29F0430-2SR |
|---|---|
| Current Rating (Max) | 8 A |
| DC Resistance (DCR) (Max) | 10 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.28 in |
| Impedance | 200 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 4 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Flat Leads, 8-SMD, Flat Lead |
| Size / Dimension Length | 0.428 in |
| Size / Dimension Width | 0.428 in |
