Description

General part information

T1920240163-002

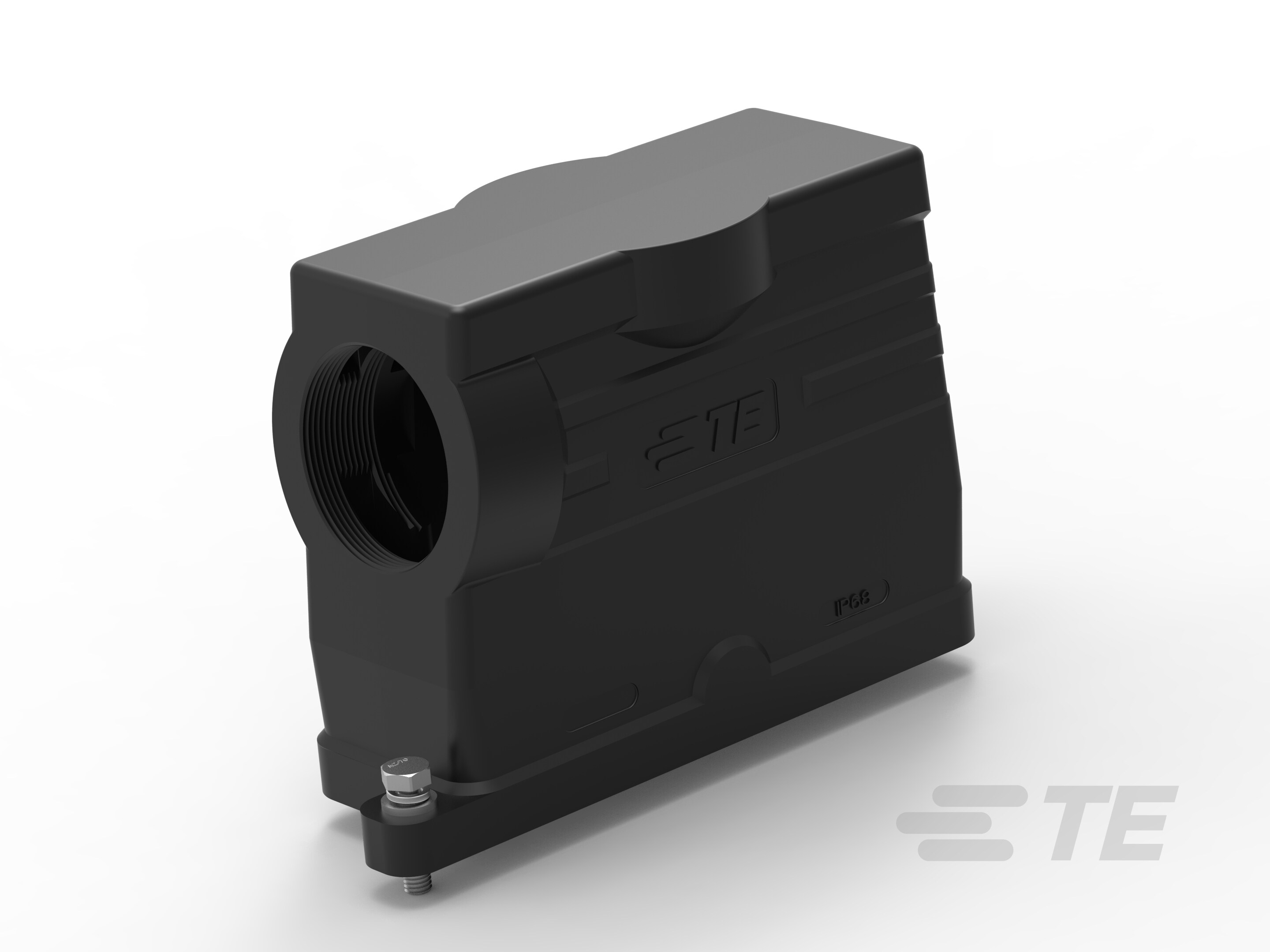

Heavy Duty Connector Hood, Top & Side Entry, Screwlock

Technical Specifications

Parameters and characteristics for this part

SpecificationT1920240163-002
Connector TypeHood
Housing ColorBlack
Housing FinishPowder Coated
Housing MaterialAluminum Alloy
Ingress Protection DescriptionDust Tight, Waterproof
Ingress Protection IP RatingIP68
Lock LocationScrew Locks on Hood
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
SizeH24B
Size / Dimension Height4.724 in
Size / Dimension Length7.598 in
Size / Dimension Width2.283 in
StyleTop Entry
Thread SizeM63
