M9LC275
ActiveSURGE PROTECTOR, SURGE ARRESTER, 1 POLE, TYPE 1, 75 KA, 275 V, DIN RAIL
M9LC275
ActiveSURGE PROTECTOR, SURGE ARRESTER, 1 POLE, TYPE 1, 75 KA, 275 V, DIN RAIL
Description
General part information
M9LC275

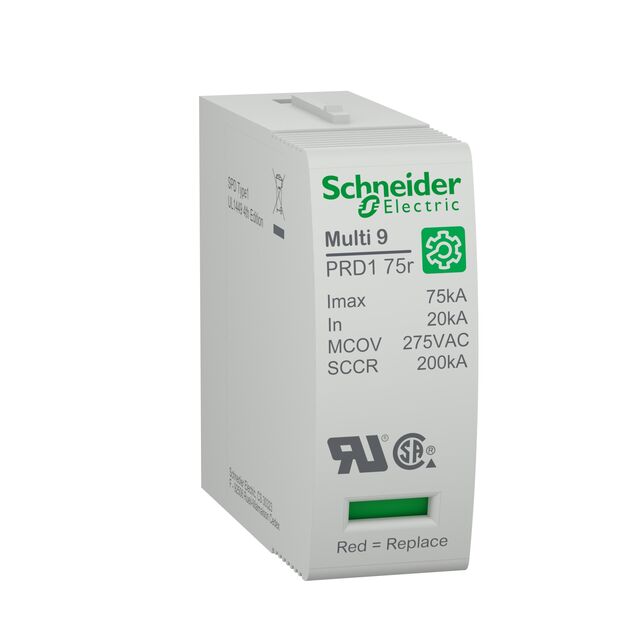

M9LC275 is a multi9 cartridge for PRD1 75r surge protection device. The Imax maximum discharge current is 75kA. The In nominal discharge current is 20kA. The Uc maximum continuous operating voltage is 275VAC. The maximum up voltage protection level is 900V. It can be plugged into a surge protecting device module. Its width is 2 pitches of 9mm. The product color is light grey (RAL 7035). The dimensions are (W) 0.68 x (H) 1.77 x (D) 2.69inch. The degree of protection is NEMA 1. The operating temperature range from -25°C to 60°C. It is compliant with UL 1449 standard.
Technical Specifications
Parameters and characteristics for this part
| Specification | M9LC275 |
|---|---|
| Current - Discharge (Max) | 75 kA |
| Current - Discharge (Nom) | 20 kA |
| Form | Module Only |
| Mounting Type | Base Mount |
| Number of Poles | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Type | Type 1 |
| Voltage - Continuous Operating (Max) (MCOV) | 275 V |
| Voltage - Protection Level (VP) (2416) | 900 V |
