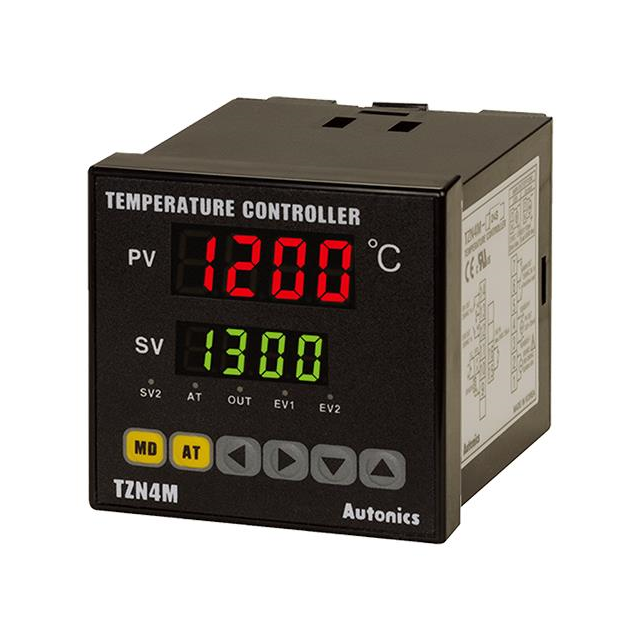

Specification	TZN4M-B4R

Communications	RS-485 (Modbus)
Control Method	Off, Proportional (PID), On
Display Characters - Height	0.512 in
Display Characters - Height (Option 2)	0.354 in
Display Type	LED - Dual Color Characters
Features	Limit Function
Input Current (Max)	20 mA
Input Current (Max) (Range 1)	20 mA
Input Current (Min)	4 mA
Input Current (Min) (Range 1)	4 mA
Input Temperature (Max)	9999 °C
Input Temperature (Max) (Range 1)	9999 °C
Input Temperature (Min)	-1999 °C
Input Temperature (Min) (Range 1)	-1999 °C
Input Voltage (Max)	10 VDC
Input Voltage (Max) (Range 1)	10 VDC
Input Voltage (Min)	0 mV
Input Voltage (Min) (Range 1)	0 VDC
Maximum Number of Characters Per Row	4 characters
Minimum Number of Characters Per Row	4 characters
Mounting Type	Panel Mount
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-10 °C
Output Type	Relay
Panel Cutout Length	68 mm
Panel Cutout Shape	Square
Panel Cutout Width	68 mm
Termination Style	Screw Terminal
Type	Temperature Controller (RTD, J, W), K, T, R, L, Type E, N, S
Voltage - Supply (Maximum)	240 VAC
Voltage - Supply (Minimum)	100 VAC
