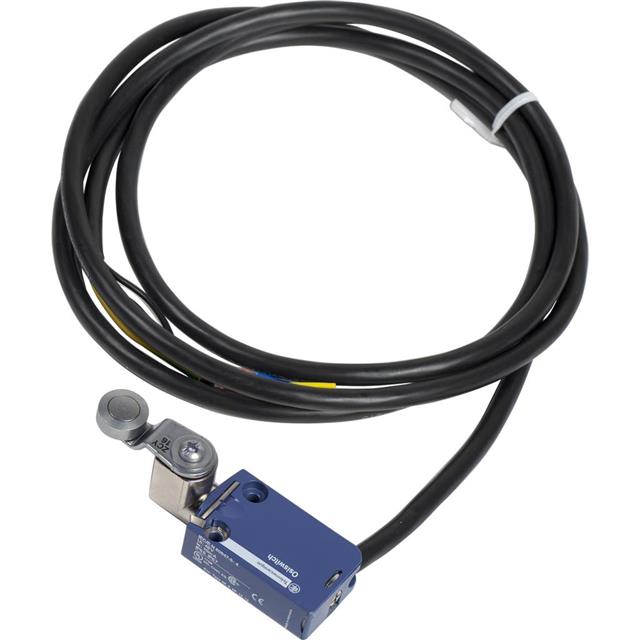

XCMD6106L1
ActiveSCHNEIDER ELECTRIC
SWITCH LIMIT DPDT 1.5A 240V
XCMD6106L1
ActiveSCHNEIDER ELECTRIC
SWITCH LIMIT DPDT 1.5A 240V
Description
General part information
XCMD6106L1
Switch DPDT (DB/DM) Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | XCMD6106L1 |
|---|---|
| Actuator Type | Side Rotary, Roller |
| Circuit | DPDT (DB/DM) |
| Current Rating | 100 mA, 1.5 A |
| Electrical Life (Cycles) | 5000000 Cycles |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP66, IP67, IP68 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Mom |
| Termination Style | Cable with Connector |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 250 VDC |
