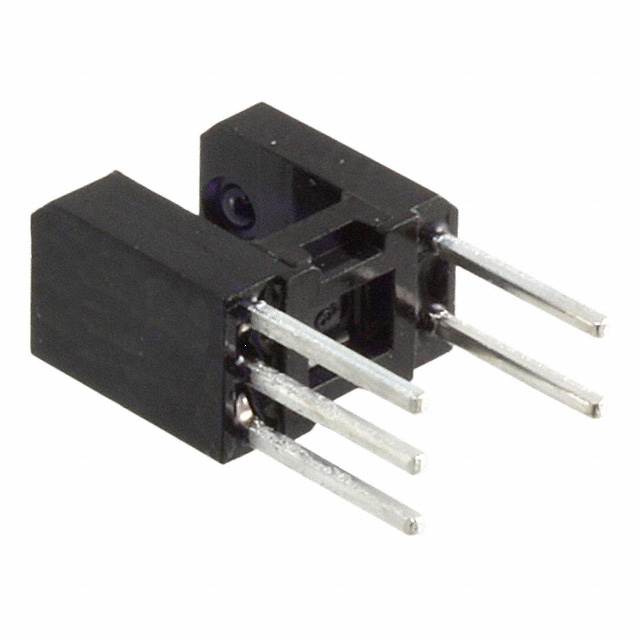

OPB618
ActiveTT Electronics/BI
SENSOR OPTICAL 3.81MM PCB MOUNT
OPB618
ActiveTT Electronics/BI
SENSOR OPTICAL 3.81MM PCB MOUNT
Description
General part information
OPB618
Optical Sensor Through-Beam 0.150" (3.81mm) PCB Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | OPB618 |
|---|---|
| Current - Supply | 12 mA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | Inverted, NPN - Open Collector |
| Package / Case | PCB Mount |
| Response Time | 30 ns |
| Sensing Distance | 0.15 " |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 16 V |
| Voltage - Supply (Minimum) | 4.5 V |
