1744382-6
ActiveTE Connectivity AMP Connectors

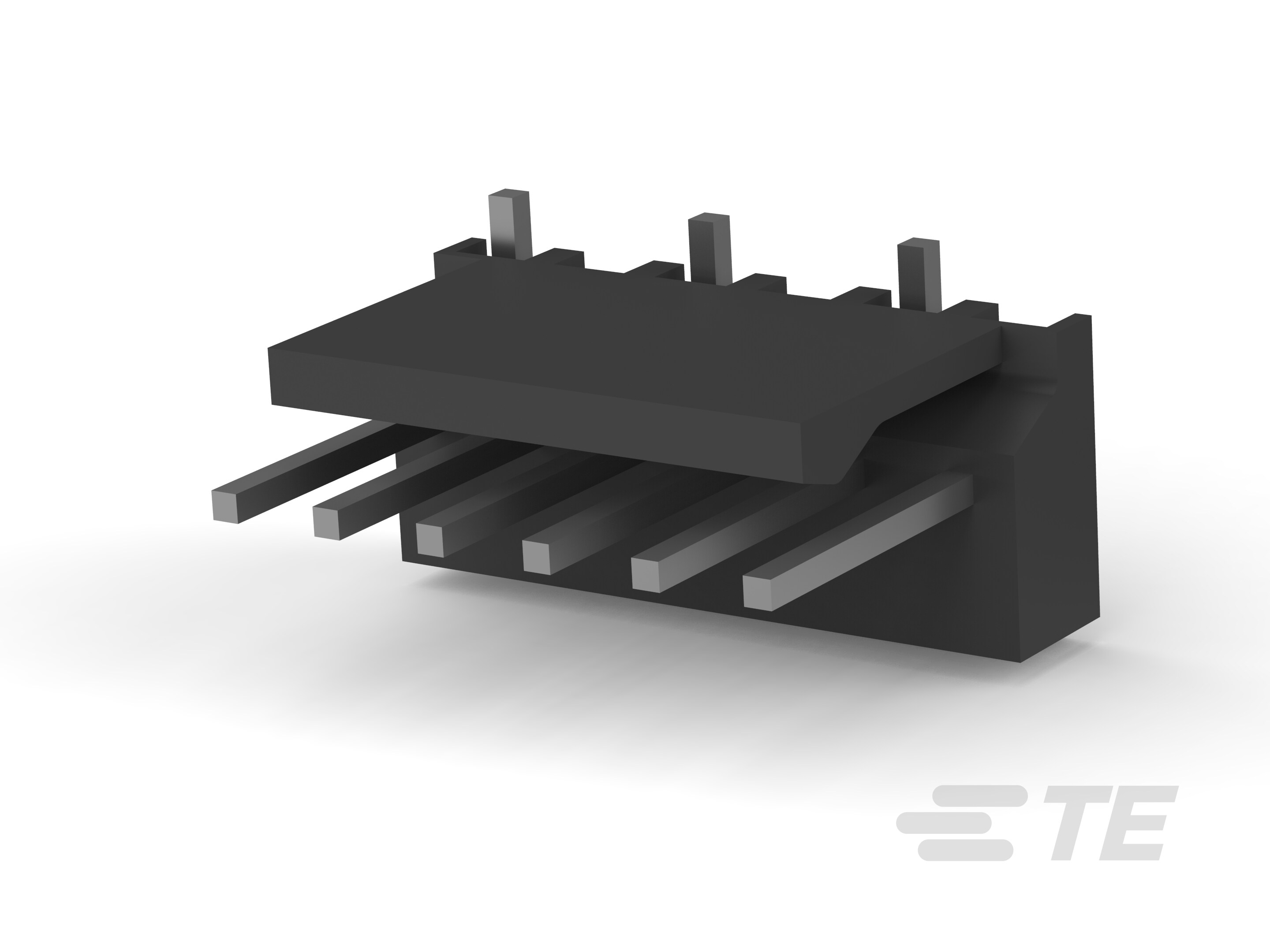

06P MTA100 HDR ASSY,SM,SN, LF
1744382-6
ActiveTE Connectivity AMP Connectors
06P MTA100 HDR ASSY,SM,SN, LF
Description
General part information
1744382-6
PCB Mount Header, Vertical, Wire-to-Board, 6 Position, 2.54 mm [.1 in] Centerline, Partially Shrouded, Tin (Sn), Surface Mount, Signal, Black, MTA 100
Technical Specifications
Parameters and characteristics for this part
| Specification | 1744382-6 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 0.295 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 0 A |
| Current Rating | Varies by Wire Gauge |
| Fastening Type | Friction Lock |
| Insulation Color | Black |
| Insulation Height | 0.347 in |
| Insulation Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch - Mating | 0.1 in |
| Shrouding | Shrouded - 1 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 250 V |
